UMWMalaysia

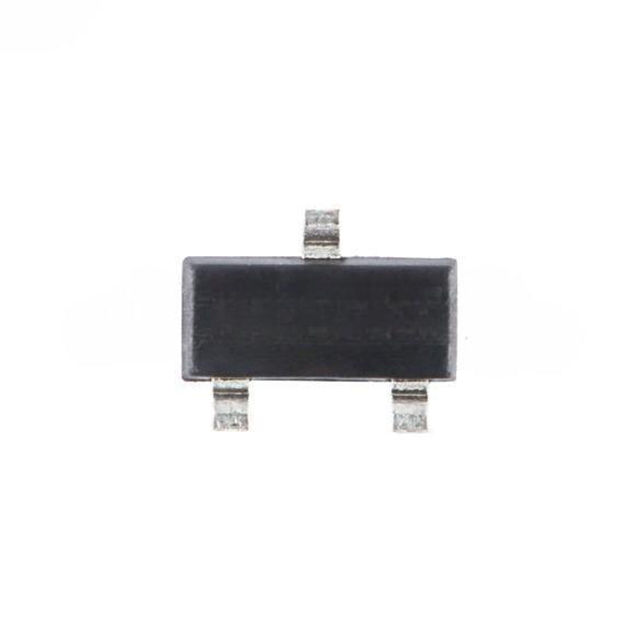

SOT-23 ESD PROTECTION DEVICES RO
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage24 V
Breakdown voltage26.2 V
Clamping voltage44 VMax
Peak pulse power350 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 2 |
| Current - Peak Pulse (10/1000µs) | 8A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 350W |
| Voltage - Breakdown (Min) | 26.2V |
| Voltage - Clamping (Max) @ Ipp | 44V |
| Voltage - Reverse Standoff (Typ) | 24V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 30pF @ 1MHz (Max) |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Other | |
| Applications | - |
| Mfr | UMW |
| Product Status | Active |
| Series | UMW |
| Type | Zener |
