Vishay Beyschlag/Draloric/BC ComponentsUnited States

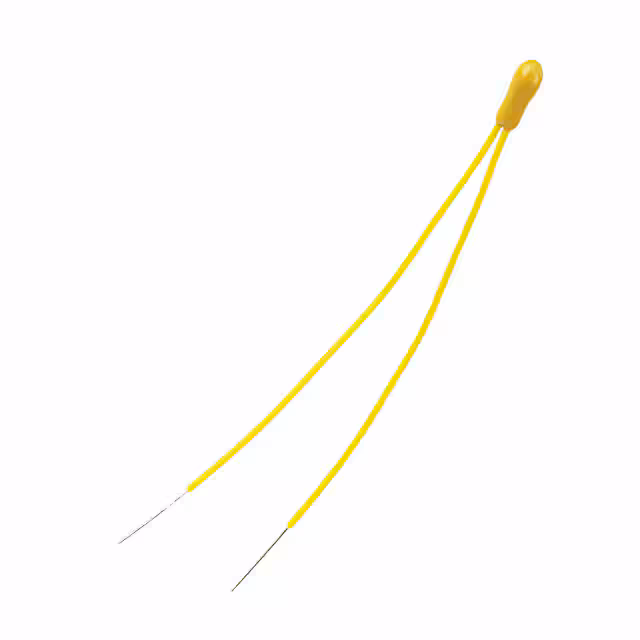

NTC EPOXY 2.4MM, ETFE INSULATED
All alternatives
View full reportTechnical parameters
Key specs
Tolerance2.18 %
B value3.977 kK
Power100 mWMax
| Power | |
|---|---|
| Power - Max | 100 mW |
| Environment and package | |
| Mounting Type | Free Hanging |
| Operating Temperature | -40°C~125°C |
| Package | Bulk |
| Package / Case | Bead |
| Other | |
| B0/50 | - |
| B25/100 | - |
| B25/50 | - |
| B25/75 | - |
| B25/85 | 3977K |
| B Value Tolerance | ±0.75% |
| Length - Lead Wire | 1.18" (30.00mm) |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Product Status | Active |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±2.18% |
| Series | Automotive, AEC-Q200 |
