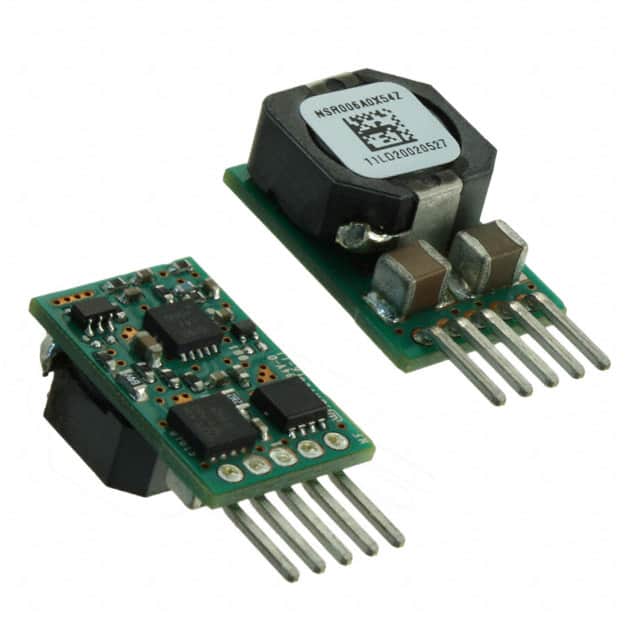

DC DC CONVERTER 0.6-6V 18W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 14 V
Output voltage600 mV ~ 6 V
Output current3 AMax
Power18 WMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 3A |
| Power (Watts) | 18 W |
| Voltage - Input (Max) | 14V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 0.6 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tray |
| Package / Case | 5-SIP Module |
| Size / Dimension | 0.41" L x 0.31" W x 0.65" H (10.4mm x 7.9mm x 16.5mm) |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | NSR003 |
| Control Features | Enable, Active High |
| Efficiency | 95.8% |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Mfr | ABB Power Electronics Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | Naos Raptor |
| Type | Non-Isolated PoL Module |
