KYOCERA AVXJapan

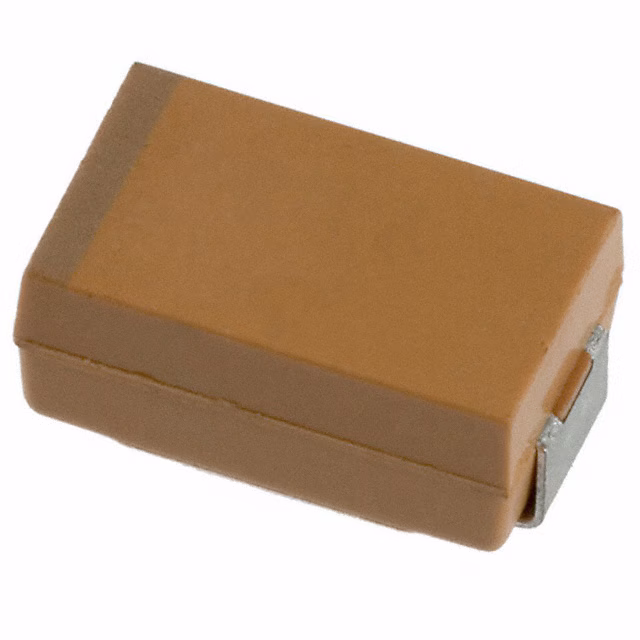

CAP NIOB OXIDE 150UF 20% 4V 2917
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Leakage | 12 µA |
| Voltage - Rated | 4 V |
| Environment and package | |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Manufacturer Size Code | Y |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Supplier Device Package | 2917 (7343 Metric) |
| Other | |
| Capacitance | 150 µF |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 100 mOhms |
| Features | Low ESR |
| Mfr | KYOCERA AVX |
| Product Status | Active |
| Series | OxiCap® NOS |
| Tolerance | ±20% |
