KYOCERA AVXJapan

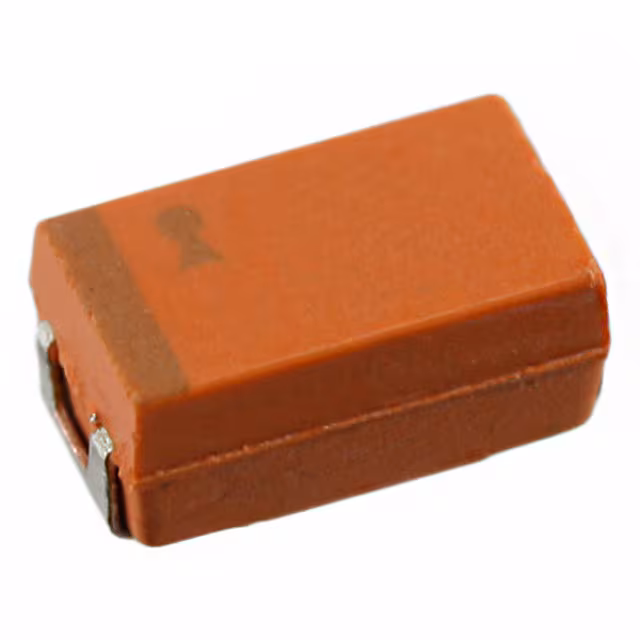

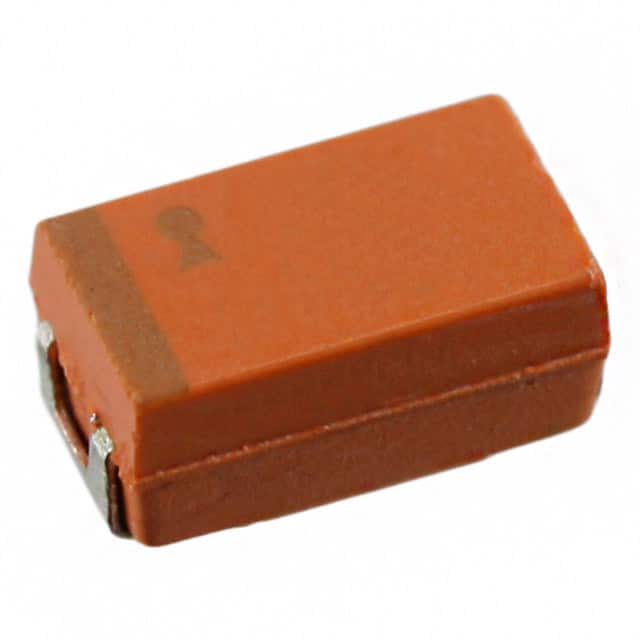

CAP NIOB OXI 220UF 20% 2.5V 2312
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Leakage | 11 µA |
| Voltage - Rated | 2.5 V |
| Environment and package | |
| Height - Seated (Max) | 0.110" (2.80mm) |
| Manufacturer Size Code | C |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
| Supplier Device Package | 2312 (6032 Metric) |
| Other | |
| Capacitance | 220 µF |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 80 mOhms |
| Features | Low ESR |
| Mfr | KYOCERA AVX |
| Product Status | Active |
| Series | OxiCap® NOS |
| Tolerance | ±20% |
