KYOCERA AVXJapan

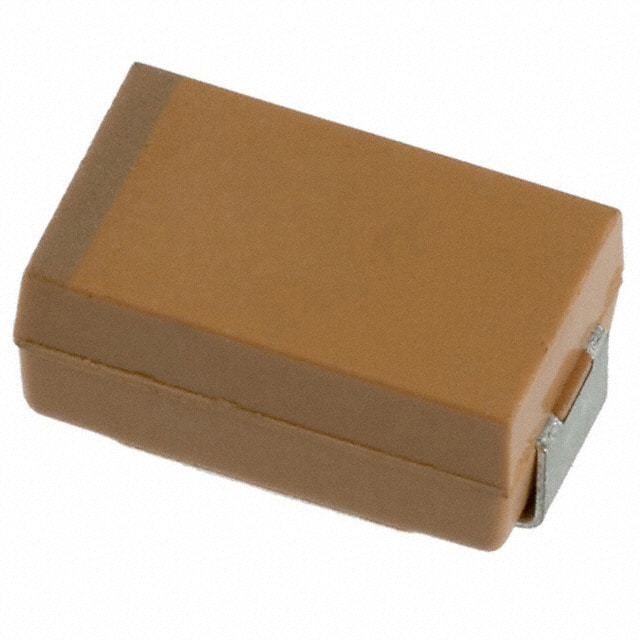

CAP NIOB OXI 330UF 20% 2.5V 2917
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Leakage | 16.5 µA |
| Voltage - Rated | 2.5 V |
| Environment and package | |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~105°C |
| Package | Tape & Reel (TR) |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Supplier Device Package | 2917 (7343 Metric) |
| Other | |
| Base Product Number | NOJD |
| Capacitance | 330 µF |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 300 mOhms |
| Features | - |
| Mfr | KYOCERA AVX |
| Product Status | Active |
| Series | OxiCap® NOJ |
| Tolerance | ±20% |
