onsemiUnited States

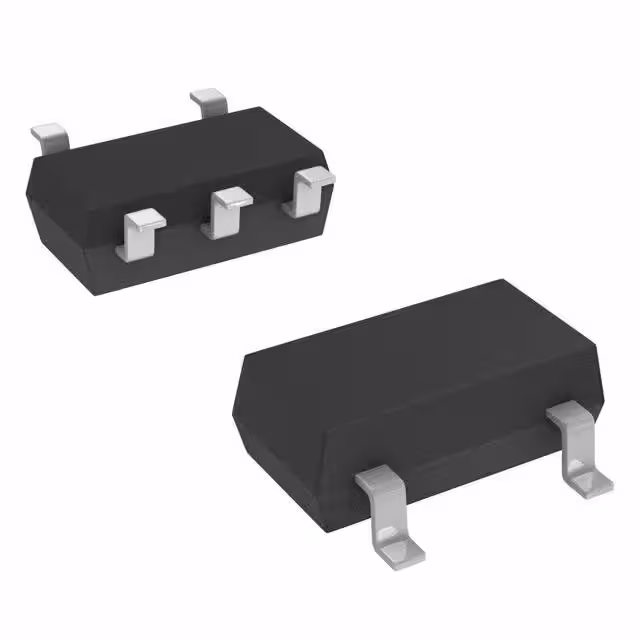

IC GATE AND 1CH 2-INP SC88A
All alternatives
View full reportTechnical parameters
Key specs
Logic typeAND
Elements1
Inputs2
Supply voltage2 ~ 6 V
Propagation delay17 nsMax · 6V
| Power | |
|---|---|
| Current - Output High, Low | 2.6mA, 2.6mA |
| Current - Quiescent (Max) | 1 µA |
| Voltage - Supply | 2V ~ 6V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
| Other | |
| Base Product Number | NLVHC1G08 |
| Features | - |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Logic Type | AND Gate |
| Mfr | onsemi |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Product Status | Obsolete |
| Series | Automotive, AEC-Q100, 74HC |
Documents
No documents are linked to this part yet.
