Artesyn Embedded PowerUnited States

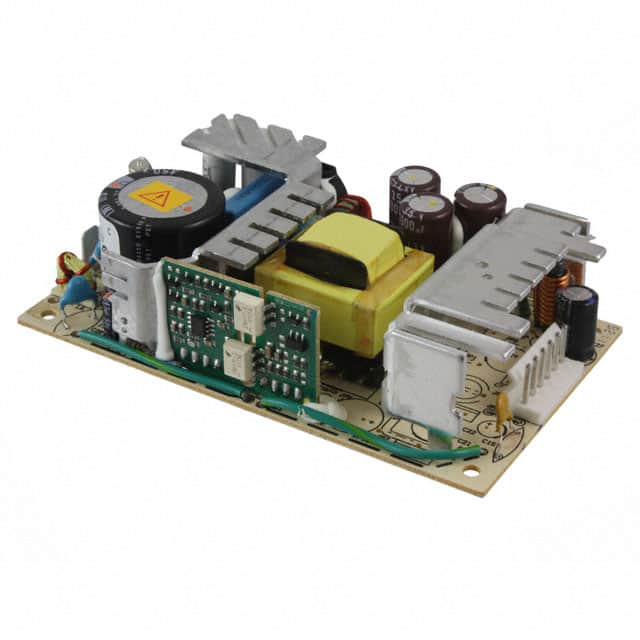

AC/DC CONVERTER 5V 12V 63W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage5 V
Output current7 AMax
Power63 WMax
Outputs2
| Power | |
|---|---|
| Current - Output 1 | 7 A |
| Current - Output 2 | 2.5 A |
| Power (Watts) | 63W (75W Forced Air) |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C |
| Package | Bulk |
| Size / Dimension | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) |
| Other | |
| Applications | Medical |
| Approval Agency | - |
| Efficiency | 72% |
| Features | Universal Input |
| Mfr | Artesyn Embedded Power |
| Minimum Load Required | Yes |
| Number of Outputs | 2 |
| Product Status | Obsolete |
| Series | NLP65-M (75W) |
| Type | Open Frame |
Documents
No documents are linked to this part yet.
