Marlow Industries, Inc.United States

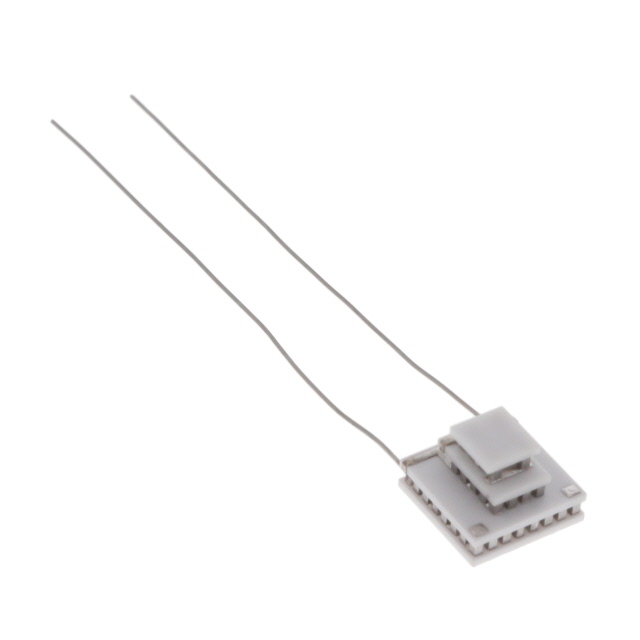

NL3026T-03AC
Thermoelectric, Peltier ModulesMULTISTAGE TEM 8.79X8.79X5.94MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 1.3 A |
| Voltage - Max | 3.4 V |
| Environment and package | |
| Height | 5.94mm |
| Operating Temperature | 85°C |
| Size / Dimension | Square - 8.79mm L x 8.79mm W |
| Other | |
| Base Product Number | NL3026T |
| Delta Tmax @ Th | 93°C @ 27°C |
| Features | Lead Wires |
| Manufacturer | Marlow Industries, Inc. |
| Number of Stages | 3 |
| Packaging | Box |
| Part Status | Active |
| Qmax @ Th | 0.6W @ 27°C |
| Resistance | 2.51 Ohms |
| Series | NL3026T |
Documents
No documents are linked to this part yet.
