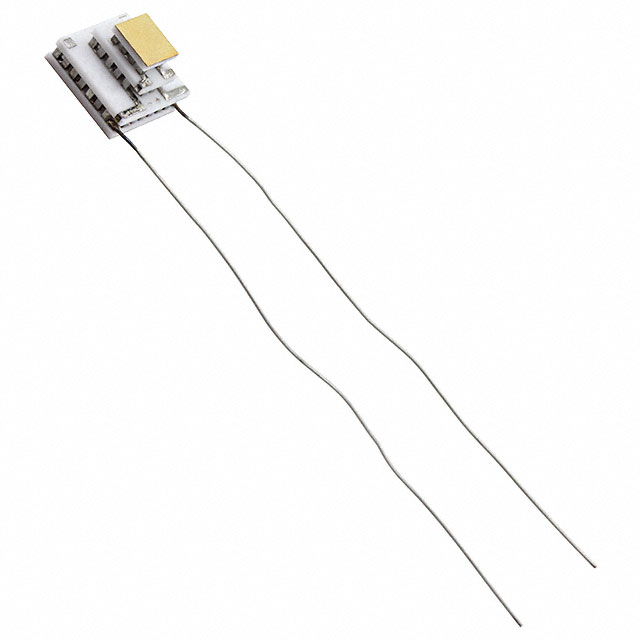

NL3026T-01AC
Marlow Industries, Inc.United States

NL3026T-01AC

Thermoelectric, Peltier Modules

MULTISTAGE TEM 8.79X8.79X5.94MM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Max1.3 A
Voltage - Max3.4 V
Environment and package
Height5.94mm
Operating Temperature85°C
Size / DimensionSquare - 8.79mm L x 8.79mm W
Other
Base Product NumberNL3026T
Delta Tmax @ Th93°C @ 27°C
FeaturesLead Wires, Exterior Metallization (Both Sides)
ManufacturerMarlow Industries, Inc.
Number of Stages3
PackagingBox
Part StatusActive
Qmax @ Th0.6W @ 27°C
Resistance2.51 Ohms
SeriesNL3026T
