onsemiUnited States

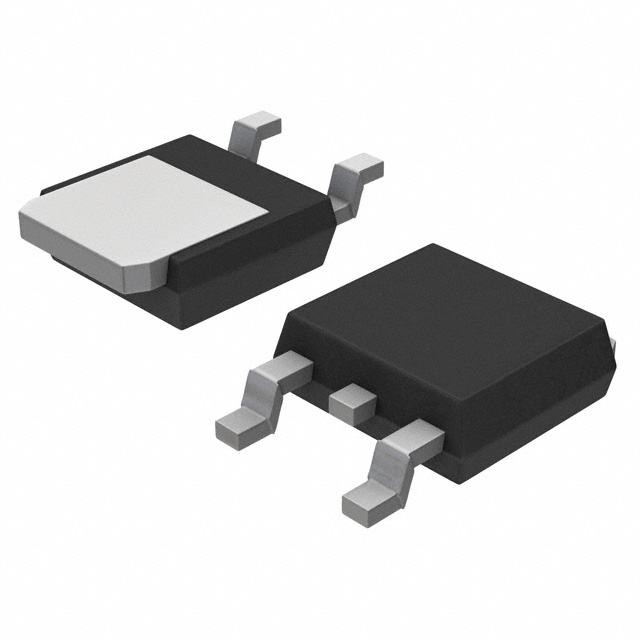

TRANS PNP 40V 3A DPAK
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage40 V
Collector current3 AMax
DC current gain103A
Power1.56 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 50µA |
| Current - Collector (Ic) (Max) | 3 A |
| Power - Max | 1.56 W |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 3A, 4V |
| Frequency - Transition | 3MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Other | |
| Base Product Number | NJVMJD32 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 375mA, 3A |
