Newhaven Display IntlUnited States

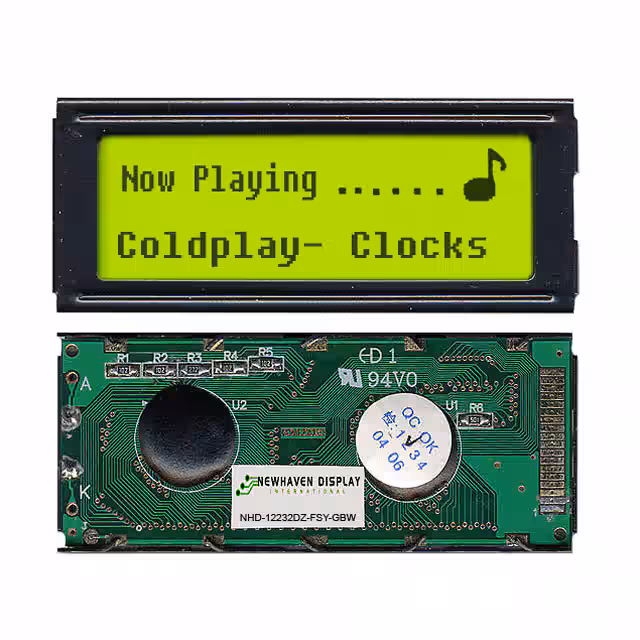

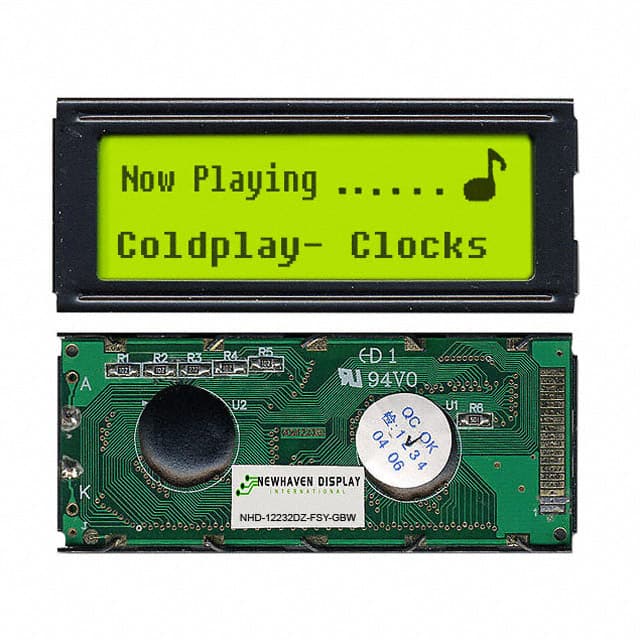

LCD MOD GRAPH 122X32 Y/G TRANSFL
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Diagonal Screen Size | - |
| Dot Size | 0.36mm W x 0.40mm H |
| Package | Box |
| Other | |
| Background Color | - |
| Backlight | LED - Yellow/Green |
| Base Product Number | NHD-12232 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch | 0.40mm W x 0.44mm H |
| Dot Pixels | 122 x 32 |
| Graphics Color | - |
| Interface | Parallel, 8-Bit |
| Mfr | Newhaven Display Intl |
| Product Status | Obsolete |
| Series | - |
| Touchscreen | - |
| Viewing Area | 59.20mm W x 18.30mm H |
