Newhaven Display IntlUnited States

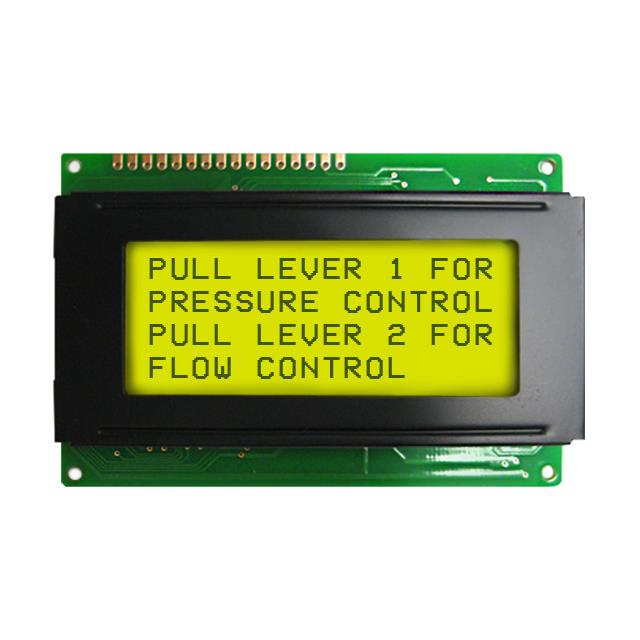

NHD-0416BZ-FL-YBW
LCD, OLED Character and NumericLCD MOD 64DIG 16X4 TRANS YLW/GRN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 4.7V ~ 5.5V |
| Environment and package | |
| Character Size | 4.75mm H x 2.95mm W |
| Dot Size | 0.55mm W x 0.55mm H |
| Operating Temperature | -20°C ~ 70°C |
| Other | |
| Background Color | Green |
| Backlight | LED - Yellow/Green |
| Base Product Number | NHD-0416 |
| Character Format | 5 x 8 Dots |
| Controller Type | SPLC780D OR ST7066U |
| Display Format | 16 x 4 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Interface | Parallel |
| Manufacturer | Newhaven Display Intl |
| Number of Characters | 64.0 |
| Outline L x W x H | 87.00mm x 60.00mm x 14.50mm |
| Packaging | Box |
| Part Status | Active |
| Series | - |
| Text Color | Blue |
| Viewing Area | 61.80mm L x 25.20mm W |
