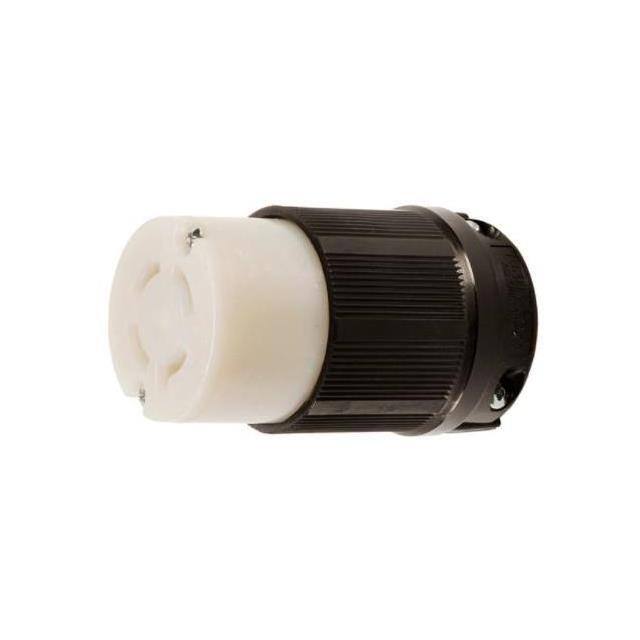

NEMA L17-30 CONNECTOR
PowertronicsUnited States

NEMA L17-30 CONNECTOR

ActivePlugs and Receptacles

NEMA L17-30 LOCKING CONNECTOR

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)30A
Voltage Rating600VAC, 3 Phase
Environment and package
Mounting TypeFree Hanging (In-Line)
PackageBox
Other
Approval AgencyCSA, UL
Connector StyleNEMA L17-30C
Connector TypeReceptacle, Female Sockets
MfrPowertronics
Number of Positions4
Product StatusActive
Series-
TerminationScrew

Documents

No documents are linked to this part yet.
