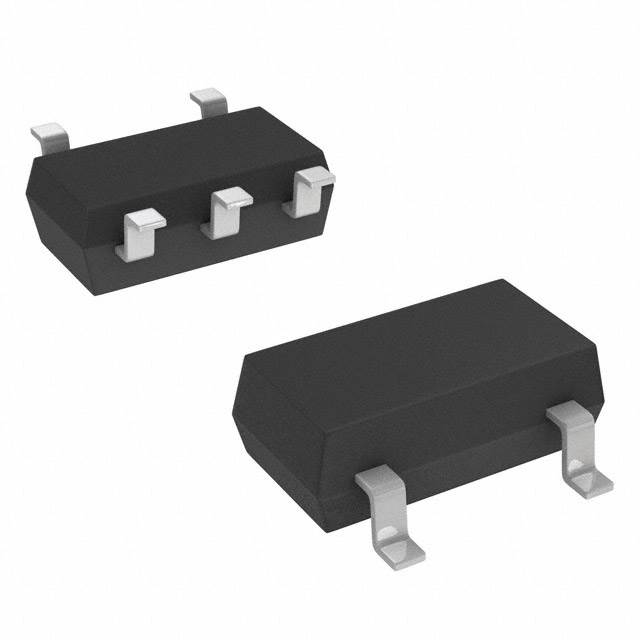

IC INVERTER 1CH 1-INP SC88A
All alternatives
View full reportTechnical parameters
Key specs
Logic typeInverter
Elements1
Inputs1
Supply voltage4.5 ~ 5.5 V
Propagation delay26 nsMax · 5.5V
| Power | |
|---|---|
| Current - Quiescent (Max) | 1 µA |
| Voltage - Supply | 4.5V ~ 5.5V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 26ns @ 5.5V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
| Other | |
| Base Product Number | 7ST04 |
| Features | - |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Logic Type | Inverter |
| Mfr | onsemi |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Product Status | Last Time Buy |
| Series | 7ST |
