NANO

Active

Das phyCORE-i.MX 8M Mini Embedded Modul verbindet Leistungsfähigkeit und geringen Energieverbrauch mit minimalen Abmessungen und günstigem Preis.

All alternatives

Power
Power supply	3.3 V
AC and DC characteristics
Frequency	up to 4x 1.6 GHz (Consumer: up to 1.8 GHz) (A53), 400 MHz (M4)
Environment and package
Dimensions	40 mm x 37 mm
Temperature range	-40°C to +85°C
Other
Architecture	ARM Cortex-A53 / Cortex-M4
Audio	4x SAI + Immersiv3D plus Dolby Atmos & AC4 or DTS Decoding
Bit width	64 bit
Camera	1x MIPI CSI-2

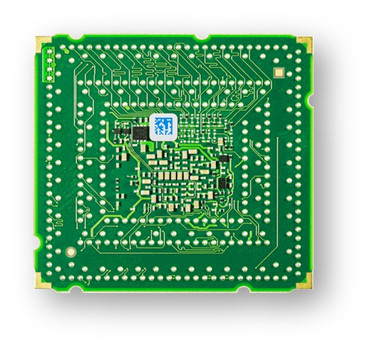

Connectors	319 solder pads, 1.27 mm pitch Fused Tin Grid Array (FTGA) + 4 GND
Display	LVDS or MIPI DSI-2
EEPROM	4 kB
eMMC	4 GB - 256 GB
Ethernet	1x 10/100/1000 Mbit/s
Graphics	Vivante GC NanoUltra 3D (1 shader) + GC30 2D (6.4 GFLOPs)
I²C	3x
MMC/SD/SDIO	3x SDIO (1x for EMMC)
Operating system	Linux (Yocto based), Android
PCle	1x
Processor	i.MX8M Mini Quad / i.MX8M Mini Dual / i.MX8M Mini Solo / i.MX8M Mini QuadLite / i.MX8M Mini DualLite / i.MX8M Mini SoloLite
PWM	up to 4x
RAM	512 MB - 4 GB (32 Bit)
RTC	Low power, high precision external RTC
Security	AES, RSA, SHA-256, 3DES, DES, ECC, ARC4, MD5, TRNG
SPI	2x FlexSPI + 3x ECSPI
SPI NOR Flash	8 MB - 256 MB
UART	4x
USB	2x USB 2.0 OTG
Video	1080p encode and decode (i.MX 8M Mini only)

No documents are linked to this part yet.
