Song Chuan(松川)China
Middle voltage DC load control.; High performance power relay for xEV vehicle.; Complies with RoHS-Directive 2011/65/EU.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage12 ~ 48 V
| Power | |
|---|---|
| Coil voltage | DC | 12~48V |
| Max. Allowable Contact current(A) | 100A |
| Power consumption | DC | 3.2W |
| Other | |
| 1. | MV013 | — | Basic series designation |
| 2. | Blank | — | Plug-in terminal |
| 3. | 1A | — | Form A, single-pole, double-make (SPDM) |
| 4. | H | — | Contact material Ag alloy |
| 5. | C | — | Flux tight |
| 6. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | —— |
| Contact and coil | 4000VAC |
| Contact circuits | —— |
| Contact configuration | 1A |
| Contact rating | Resistive load | 100A 200VDC |
| Dielectric strength | Open contact | 1000VAC |
| Electrical(Min.) | 1×102 |
| Life expectancy | Mechanical(Min.) | 1×106 |

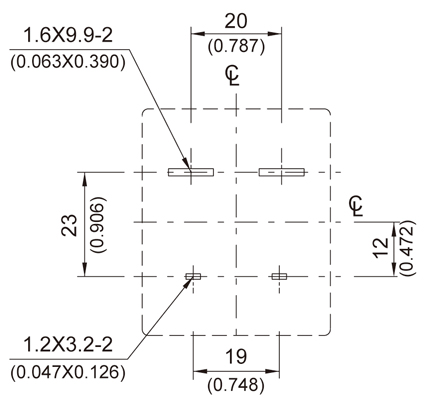

| Outline (L×W×H) mm | 50 × 41.5 × 46.5 |
