Marktech OptoelectronicsUnited States

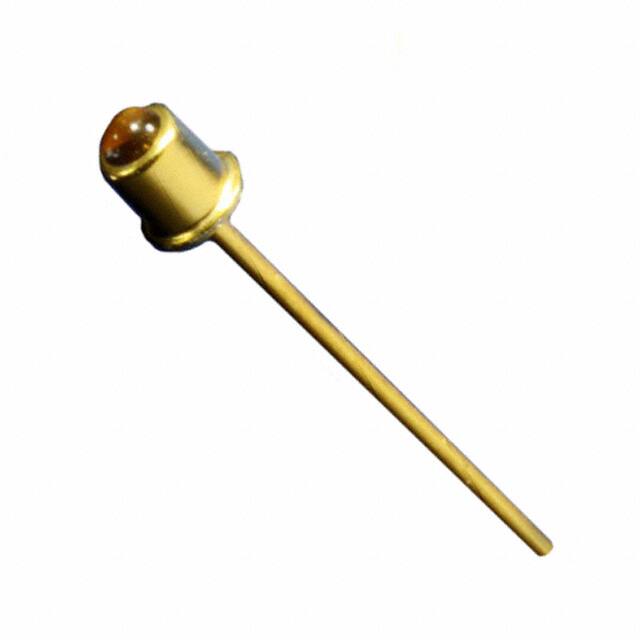

EMITTER IR 855NM 80MA COAXIAL
All alternatives
View full reportTechnical parameters
Key specs
ColorInfrared
Wavelength855 nm
Forward voltage1.7 VTyp
Test current80 mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 80mA |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~85°C(TA) |
| Package | Bulk |
| Package / Case | Coaxial, Metal Can |
| Other | |
| Base Product Number | MTPS8085 |
| Mfr | Marktech Optoelectronics |
| Orientation | Top View |
| Product Status | Active |
| Radiant Intensity (Ie) Min @ If | - |
| Series | Point Source |
| Type | Infrared (IR) |
| Viewing Angle | 10° |
| Wavelength | 855nm |
