Texas InstrumentsUnited States
IC MCU 16BIT 8KB FLASH 32VQFN
All alternatives
View full reportTechnical parameters
Key specs
CoreMSP430
Core size16 bit
Speed16 MHzMax
Flash8 kB
RAM512 B
I/O count24
Supply voltage1.8 ~ 3.6 V
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Environment and package | |
| Core Size | 16-Bit |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

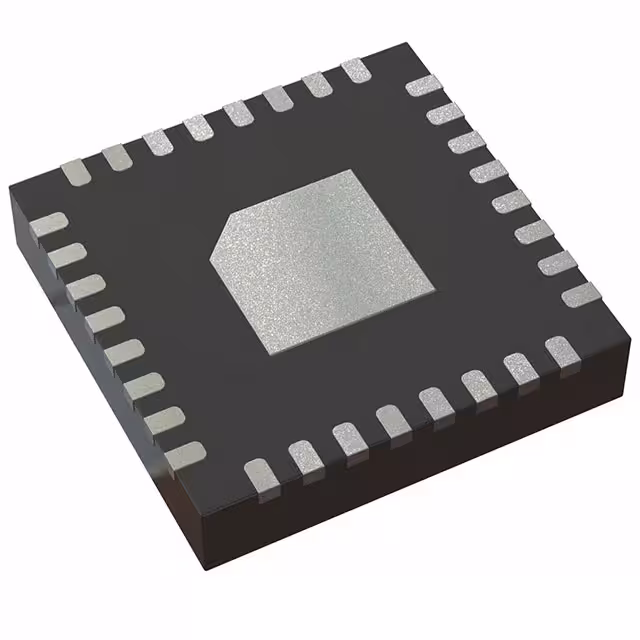

| Package / Case | 32-VFQFN Exposed Pad |
| Program Memory Size | 8KB (8K x 8 + 256B) |
| RAM Size | 512 x 8 |
| Supplier Device Package | 32-VQFN (5x5) |
| Other | |
| Base Product Number | MSP430F2132 |
| Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
| Core Processor | MSP430 CPU16 |
| Data Converters | A/D 8x10b |
| Mfr | Texas Instruments |
| Number of I/O | 24 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Product Status | Active |
| Program Memory Type | FLASH |
| Series | MSP430F2xx |
| Speed | 16MHz |
