Inventus PowerUnited States

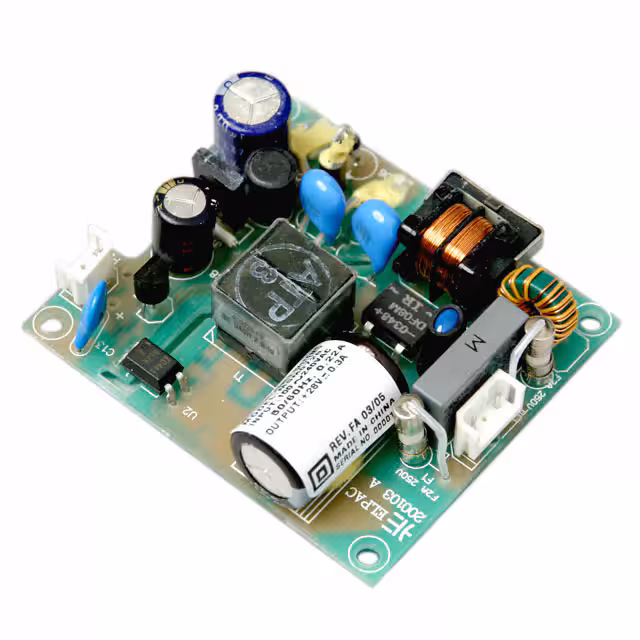

AC/DC CONVERTER 15V 7W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage15 V
Output current500 mAMax
Power7 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 500 mA |
| Power (Watts) | 7W |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~50°C |
| Package | Bulk |
| Size / Dimension | 2.28" L x 2.00" W x 0.71" H (57.9mm x 50.8mm x 18.1mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CB, CE, UL |
| Efficiency | 77% |
| Features | Universal Input |
| Mfr | Inventus Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | MSM07 (7W) |
| Type | Open Frame |
