Standex-Meder ElectronicsUnited States

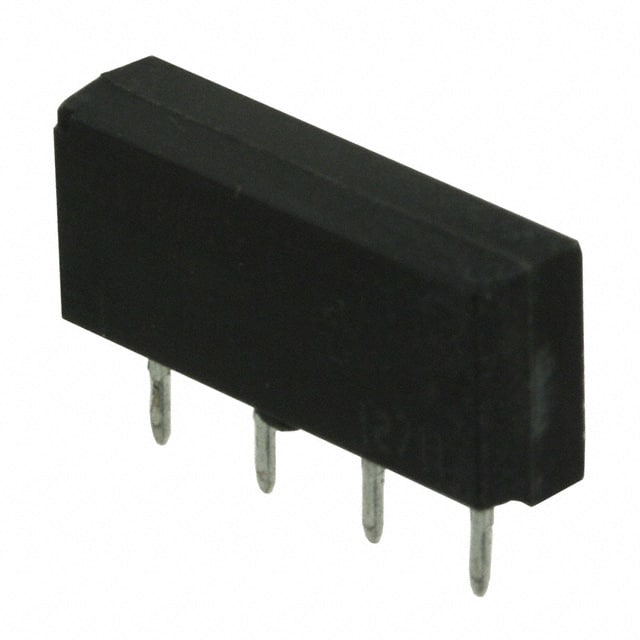

RELAY REED SPST 500MA 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Current | 17.1 mA |
| Coil Voltage | 12VDC |
| Contact Rating (Current) | 500 mA |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.8 VDC |
| Switching Voltage | 200VAC, 200VDC - Max |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~70°C |
| Package | Tube |
| Other | |
| Coil Resistance | 700 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | - |
| Features | - |
| Mfr | Standex-Meder Electronics |
| Operate Time | 0.5 ms |
| Product Status | Active |
| Release Time | 0.1 ms |
| Seal Rating | - |
| Series | MS |
| Termination Style | PC Pin |
