NXP USA Inc.Netherlands

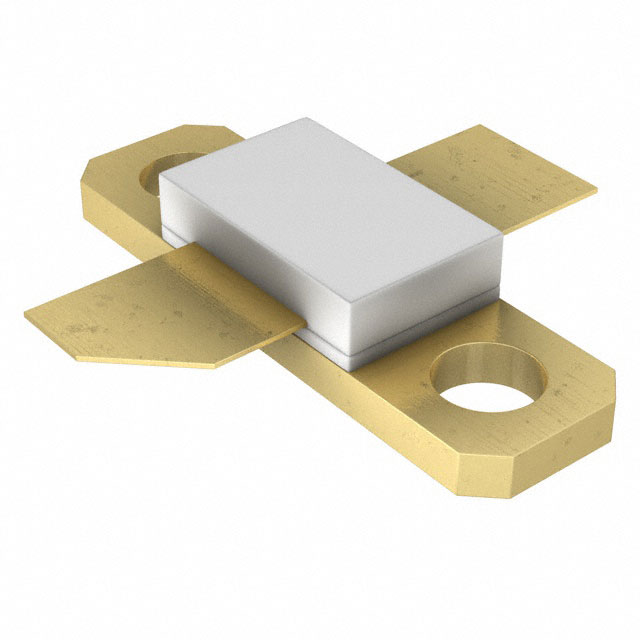

FET RF 65V 945MHZ NI-360
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Current - Test | 450 mA |
| Power - Output | 60W |
| Voltage - Rated | 65 V |
| Voltage - Test | 26 V |
| AC and DC characteristics | |
| Frequency | 945MHz |
| Gain | 17dB |
| Noise Figure | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Package | Tape & Reel (TR) |
| Package / Case | NI-360 |
| Supplier Device Package | NI-360 |
| Other | |
| Base Product Number | MRF90 |
| Mfr | NXP USA Inc. |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | LDMOS |
Documents
No documents are linked to this part yet.
