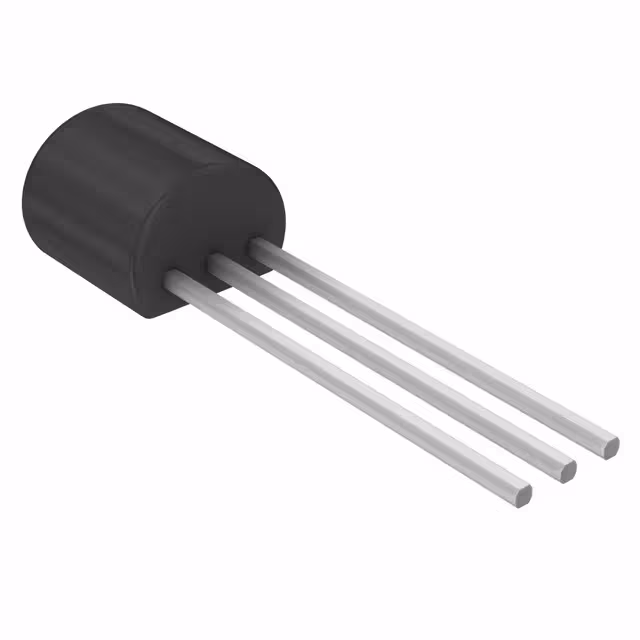

RF TRANS NPN 15V 800MHZ TO92-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | - |
| Power - Max | 350mW |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 5mA, 10V |
| Frequency - Transition | 800MHz |
| Gain | 24dB |
| Noise Figure (dB Typ @ f) | 6dB @ 200MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Tape & Reel (TR) |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
| Other | |
| Base Product Number | MPSH17 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
