Artesyn Embedded PowerUnited States

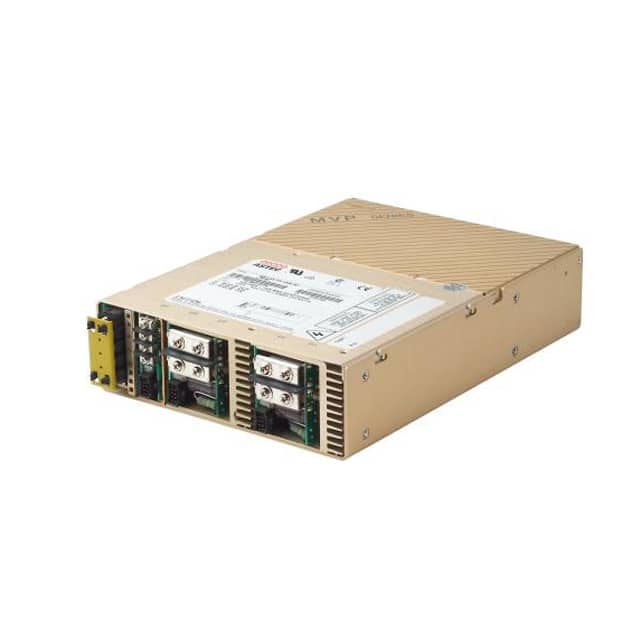

AC/DC CONVERTER 30V 15V 800W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage30 V
Output current12 AMax
Power800 WMax
Outputs2
| Power | |
|---|---|
| Current - Output 1 | 12 A |
| Current - Output 2 | 14 A |
| Power (Watts) | 800W |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 300 VDC |
| Voltage - Output 1 | 30V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~70°C(WithDerating) |
| Package | Bulk |
| Size / Dimension | - |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, CSA, UL, VDE |
| Efficiency | 85% |
| Features | Adjustable Output, PFC, Remote On/Off, Universal Input |
| Mfr | Artesyn Embedded Power |
| Minimum Load Required | - |
| Number of Outputs | 2 |
| Product Status | Obsolete |
| Series | MP6 (800W) |
| Type | Enclosed |
