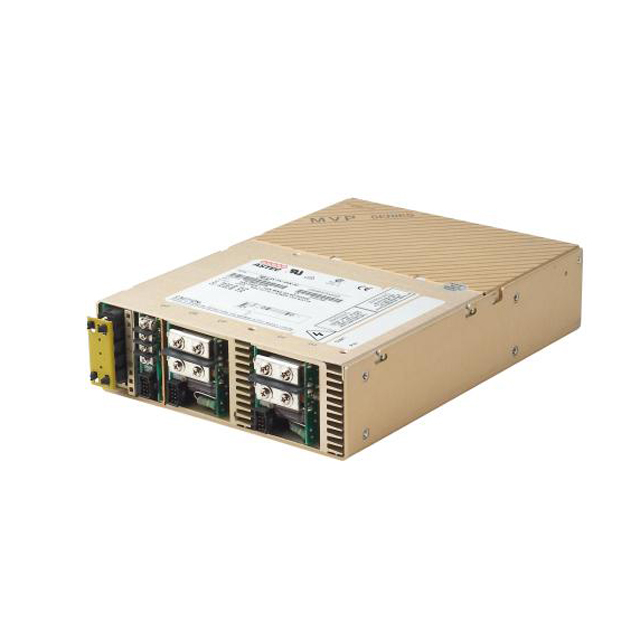

AC/DC CNVRTR 2.2V 24V 2X15V 800W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage2.2 V
Output current35 AMax
Power800 WMax
Outputs5
| Power | |
|---|---|
| Current - Output 1 | 35 A |
| Current - Output 2 | 8.5 A |
| Current - Output 3 | 8.5 A |
| Current - Output 4 | 8 A |
| Current - Output 5 | 4 A |
| Power (Watts) | 800W |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 300 VDC |
| Voltage - Output 1 | 2.2V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | 24V |
| Voltage - Output 4 | 15V |
| Voltage - Output 5 | 15V |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Package | Bulk |
| Size / Dimension | 11.00" L x 5.00" W x 2.50" H (279.4mm x 127.0mm x 63.5mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, CSA, UL, VDE |
| Efficiency | 85% |
| Features | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input |
| Mfr | Artesyn Embedded Power |
| Minimum Load Required | - |
| Number of Outputs | 5 |
| Product Status | Obsolete |
| Series | MP6 (800W) |
| Type | Enclosed |
