Artesyn Embedded PowerUnited States

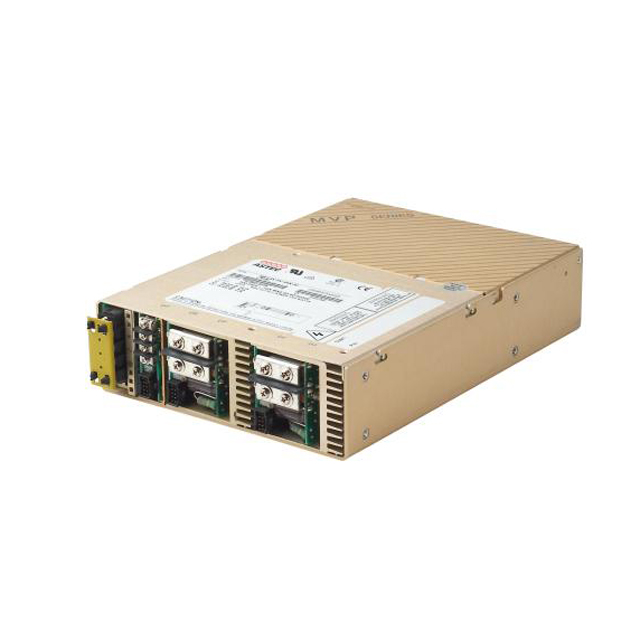

AC/DC CNVT 2X8V 5V 3X15V 600W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage8 V
Output current1 AMax
Power600 WMax
Outputs6
| Power | |
|---|---|
| Current - Output 1 | 1 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 2 A |
| Current - Output 4 | 1 A |
| Current - Output 5 | 1 A |
| Current - Output 6 | 2 A |
| Power (Watts) | 600W |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 300 VDC |
| Voltage - Output 1 | 8V |
| Voltage - Output 2 | 8V |
| Voltage - Output 3 | 5V |
| Voltage - Output 4 | 15V |
| Voltage - Output 5 | 15V |
| Voltage - Output 6 | 15V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Package | Bulk |
| Size / Dimension | 10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, CSA, UL, VDE |
| Efficiency | 85% |
| Features | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input |
| Mfr | Artesyn Embedded Power |
| Minimum Load Required | - |
| Number of Outputs | 6 |
| Product Status | Obsolete |
| Series | MP4 (600W) |
| Type | Enclosed |
