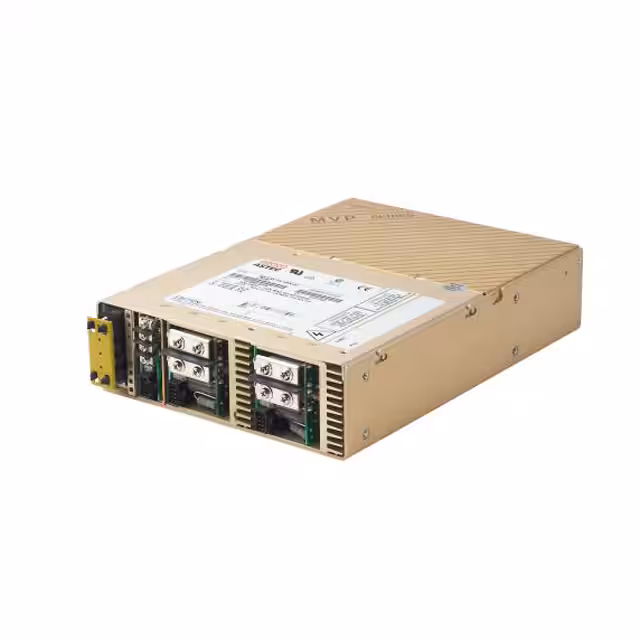

MP4-1D-1E-1L-4LL4-03
Artesyn Embedded PowerUnited States

MP4-1D-1E-1L-4LL4-03

ObsoleteAC DC Converters

AC/DC CNVRTR 3.3V 60V 2X12V 600W

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Input voltage85 ~ 264 V
Output voltage3.3 V
Output current35 AMax
Power600 WMax
Outputs5
Power
Current - Output 135 A
Current - Output 235 A
Current - Output 317 A
Current - Output 410 A
Current - Output 54 A
Power (Watts)600W
Voltage - Input85 ~ 264 VAC, 120 ~ 300 VDC
Voltage - Output 13.3V
Voltage - Output 260V
Voltage - Output 312V
Voltage - Output 412V
Voltage - Output 5-
Voltage - Output 6-
Environment and package
Mounting TypeChassis Mount
Operating Temperature-40°C~70°C(WithDerating)
PackageBulk
Size / Dimension10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm)
Other
ApplicationsITE (Commercial), Medical
Approval AgencyCB, CE, CSA, UL, VDE
Efficiency85%
FeaturesAdjustable Output, PFC, Remote Sense, Standby Output, Universal Input
MfrArtesyn Embedded Power
Minimum Load Required-
Number of Outputs5
Product StatusObsolete
SeriesMP4 (600W)
TypeEnclosed
