Thermoelectric Conversion Systems LtdUnited Kingdom

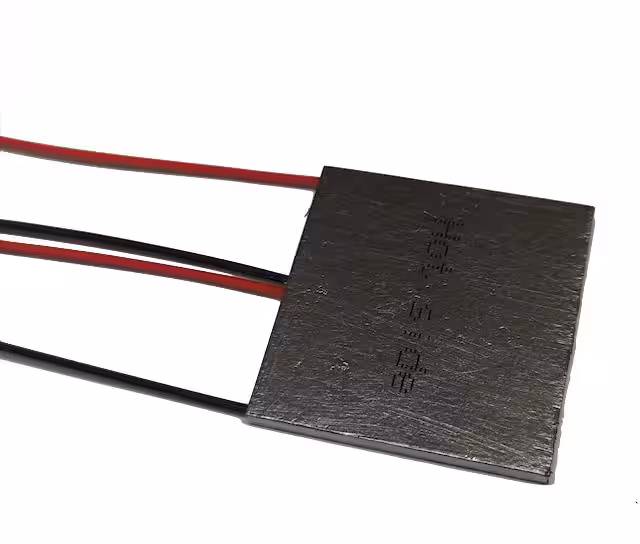

TEG GENERATOR 40X40 20W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 5 A |
| Voltage - Max | 16 V |
| Environment and package | |
| Height | 3.60mm |
| Operating Temperature | 400°C |
| Package | Box |
| Size / Dimension | Square - 40.00mm L x 40.00mm W |
| Other | |
| Base Product Number | MONTEG |
| Delta Tmax @ Th | 380°C @ 400°C |
| Features | Lead Wires, Lapped, Pellet Measurement, Sealed |
| Mfr | Thermoelectric Conversion Systems Ltd |
| Number of Stages | 1 |
| Product Status | Active |
| Qmax @ Th | 20.0W @ 330°C |
| Resistance | 1.5 Ohms |
| Series | TEG |
Documents
No documents are linked to this part yet.
