Lite-On Inc.Taiwan, China

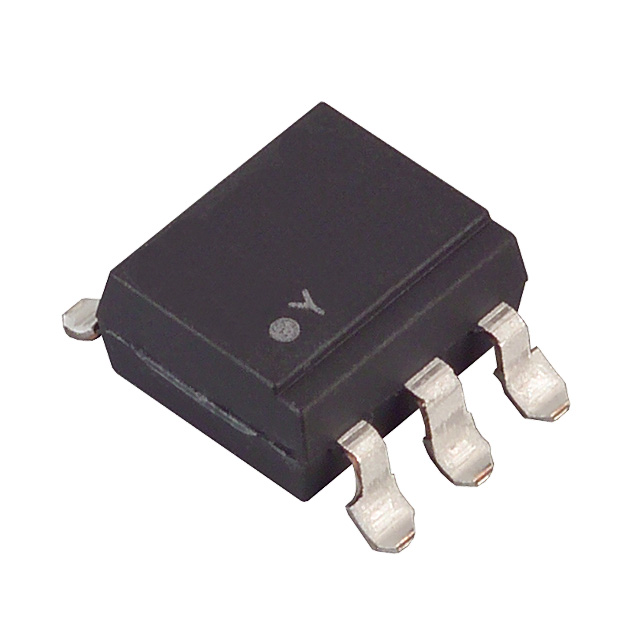

OPTOISOLATOR 5KV TRIAC 6SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Hold (Ih) | 250µA (Typ) |
| Current - LED Trigger (Ift) (Max) | 15mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 400 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Package | Tape & Reel (TR) |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Other | |
| Approval Agency | CQC, CSA, TUV, UL, VDE |
| Base Product Number | MOC302 |
| Mfr | Lite-On Inc. |
| Output Type | Triac |
| Product Status | Active |
| Series | MOC302x |
| Static dV/dt (Min) | 1kV/µs |
| Turn On Time | - |
| Zero Crossing Circuit | No |
