IXYSUnited States

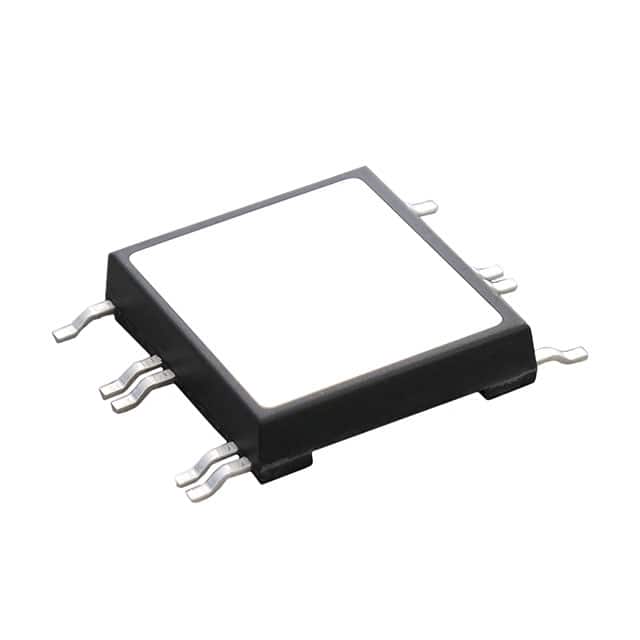

IGBT F BRIDGE 3000V 34A 24SMPD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 34 A |
| Power - Max | 150 W |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tube |
| Package / Case | 24-SMD Module, 9 Leads |
| Supplier Device Package | 24-SMPD |
| Other | |
| Base Product Number | MMIX4B20 |
| Configuration | Full Bridge |
| IGBT Type | - |
| Input | Standard |
| Mfr | IXYS |
| NTC Thermistor | No |
| Product Status | Active |
| Series | BIMOSFET™ |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 20A |
