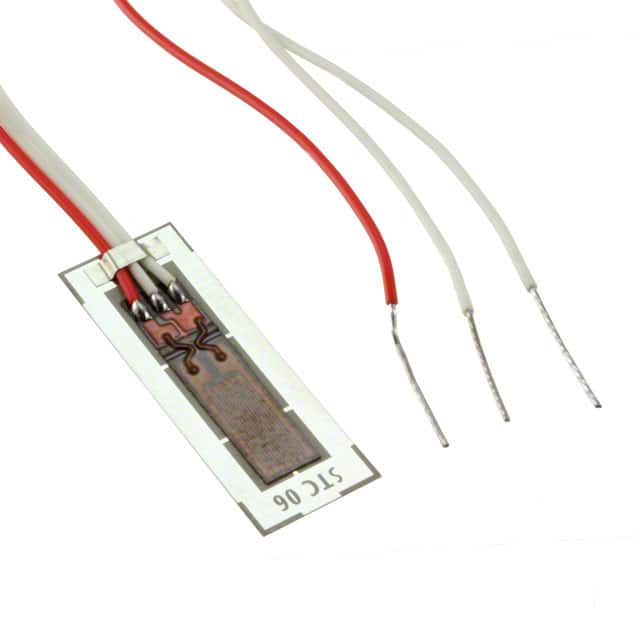

STRAIN GAUGE 350OHM LINEAR 1=5PC
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | -320~500°F(-195~260°C) |
| Package | Bulk |
| Other | |
| Length - Active | 0.250" (6.35mm) |
| Length - Overall | 0.88" (22.4mm) |
| Length - Overall Pattern | 0.620" (15.70mm) |
| Mfr | Micro-Measurements (Division of Vishay Precision Group) |
| Pattern Type | Linear Weldable |
| Product Status | Obsolete |
| Resistance | 350 Ohms |
| Resistance Tolerance | ±0.4% |
| Series | LWK |
| Strain Range | 0.5% (±5000µm/m) |
| Width - Active | 0.125" (3.18mm) |
| Width - Overall | 0.32" (8.1mm) |
| Width - Overall Pattern | 0.170" (4.30mm) |
