MMF003153
Micro-Measurements (Division of Vishay Precision Group)United States

MMF003153

ObsoleteStrain Gauges

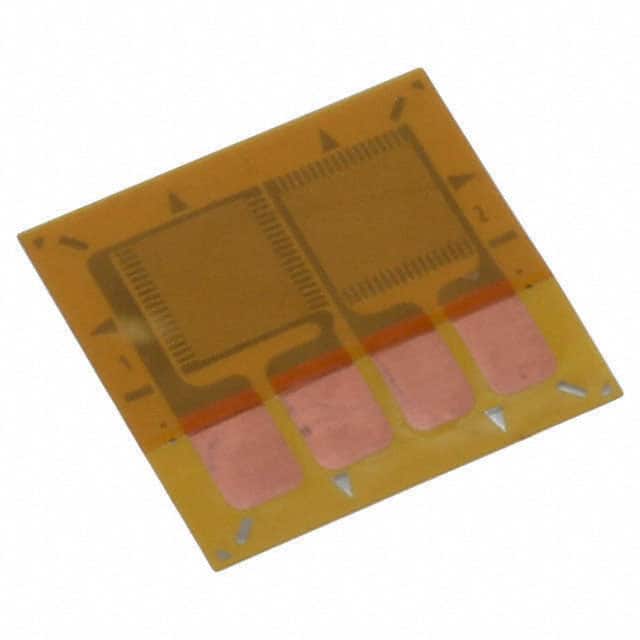

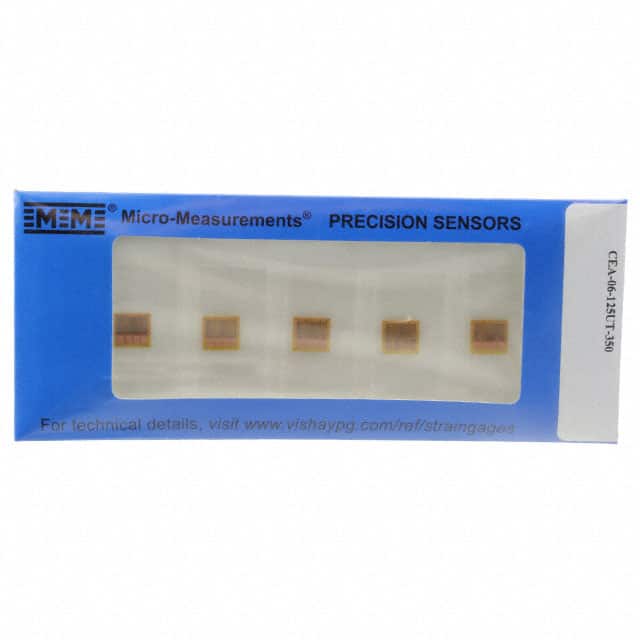

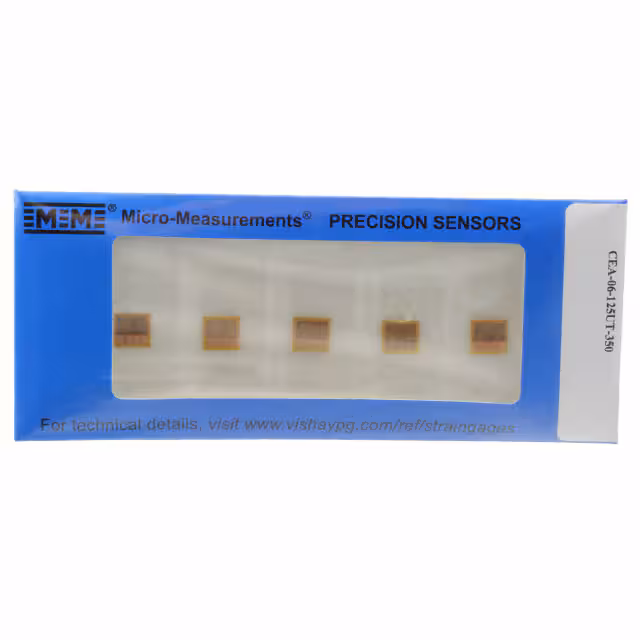

STRAIN GAUGE 350 OHM TEE 1=5PC

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Environment and package
Operating Temperature-100~350°F(-75~175°C)
PackageBulk
Other
Length - Active0.125" (3.18mm) per section
Length - Overall0.42" (10.7mm)
Length - Overall Pattern0.325" (8.26mm)
MfrMicro-Measurements (Division of Vishay Precision Group)
Pattern TypeTee Rosette
Product StatusObsolete
Resistance350 Ohms
Resistance Tolerance±0.4%
SeriesCEA
Strain Range±5%
Width - Active0.165" (4.19mm) per section
Width - Overall0.45" (11.4mm)
Width - Overall Pattern0.365" (9.27mm)

Documents

No documents are linked to this part yet.
