MDDGermany

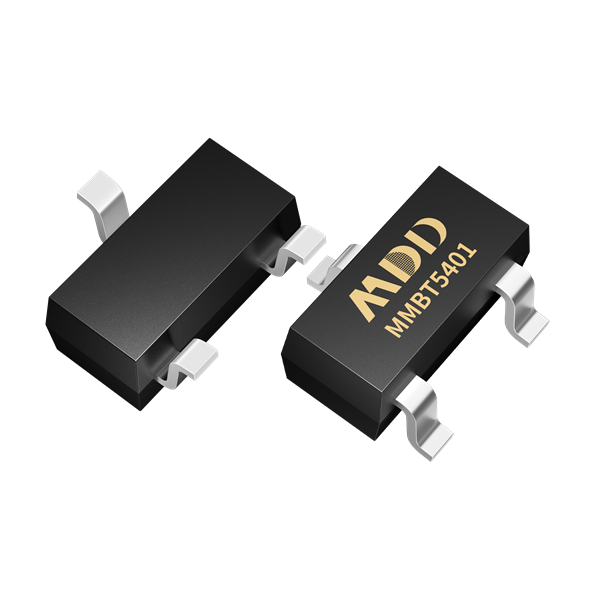

TRANS PNP 160V SOT23
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage160 V
DC current gain801mA
Power300 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Power - Max | 300 mW |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 1mA, 5V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| Mfr | MDD |
| Product Status | Active |
| Series | SOT-23 |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 5mA, 50mA |
