Fairchild SemiconductorUnited States

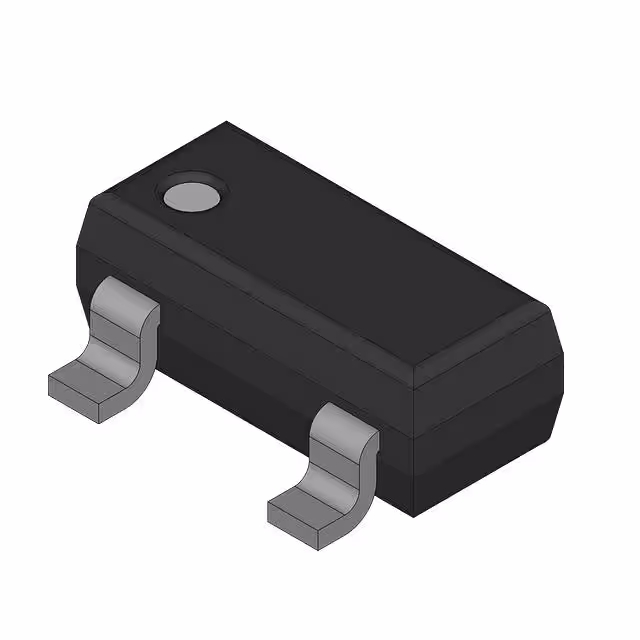

TRANS PNP 40V 0.2A SOT23-3
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage40 V
Collector current200 mAMax
DC current gain10010mA
Power250 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 50nA |
| Current - Collector (Ic) (Max) | 200 mA |
| Power - Max | 250 mW |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Frequency - Transition | 250MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Bulk |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Other | |
| Base Product Number | MMBT |
| Mfr | Fairchild Semiconductor |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA |
