onsemiUnited States
DIODE GEN PURP 70V 200MA SOT23-3
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage70 V
Average rectified current200 mA
Forward voltage1.1 VMax · 100 mA
TypeStandardSmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V |
| Voltage - DC Reverse (Vr) (Max) | 70 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |

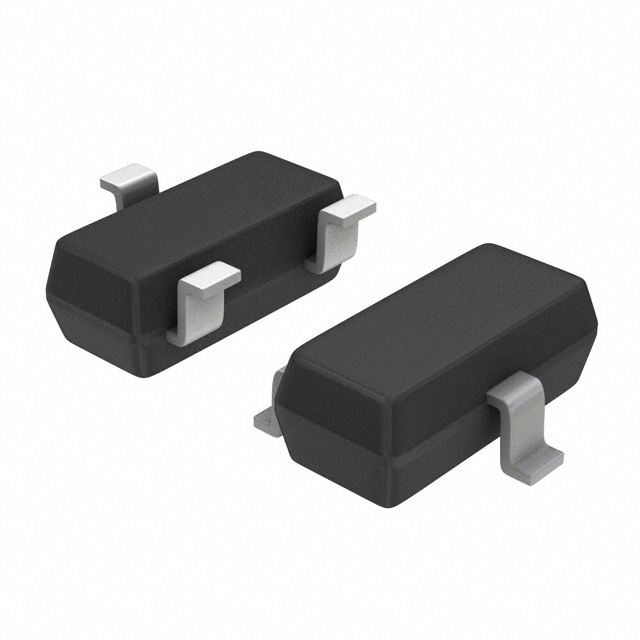

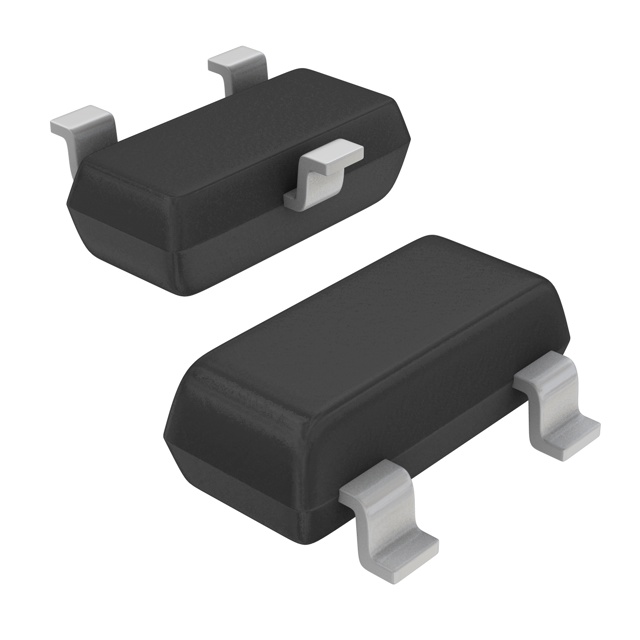

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Other | |
| Base Product Number | MMBD6050 |
| Capacitance @ Vr, F | - |
| Mfr | onsemi |
| Product Status | Active |
| Reverse Recovery Time (trr) | 4 ns |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
