MM74HC02MX

IC GATE NOR 4CH 2-INP 14SOIC

Quad 2-input NOR gate using CMOS technology, supply voltage 2V to 6V, typical propagation delay 8ns, SOIC-14 package, lead-free and halide-free.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Logic typeNOR

Elements4

Inputs2

Supply voltage2 ~ 6 V

Propagation delay8 nsTyp · Typ: 8 ns (VCC=5V，TA=25°C，CL=15pF)

Datasheet-verified parameters

22 items

Parameter	Value and test conditions	Source
Logic Type	NOR Gate
Units	4
Inputs	2
Supply Voltage	Min: 2 V, Max: 6 V
Propagation Delay	Typ: 8 ns (VCC=5V, TA=25°C, CL=15pF)
Package	SOIC-14, Case 751EF
Operating Temperature Range	Min: -40 °C, Max: +85 °C
Grade	Commercial
RoHS	Pb-Free
Halogen Free	Halide Free
Absolute Maximum Rating - Supply Voltage	-0.5 to +6.5 V
Absolute Maximum Rating - Storage Temperature	-65 to +150 °C
Quiescent Supply Current	Max: 20 μA (VCC=6.0V, TA=-40°C to 85°C)
Input Current	Max: ±1.0 μA (VCC=6.0V, TA=-40°C to 85°C)
Output Current	Min: 4 mA (VCC=4.5V, TA=-40°C to 85°C)
Minimum HIGH Level Input Voltage	Min: 3.15 V (VCC=4.5V, TA=-40°C to 85°C)
Maximum LOW Level Input Voltage	Max: 1.35 V (VCC=4.5V, TA=-40°C to 85°C)
Minimum HIGH Level Output Voltage	Min: 3.98 V (VCC=4.5V, \|IOUT\|≤4.0mA, TA=-40°C to 85°C)
Maximum LOW Level Output Voltage	Max: 0.26 V (VCC=4.5V, \|IOUT\|≤4.0mA, TA=-40°C to 85°C)
Input Capacitance	Max: 10 pF (TA=-40°C to 85°C)
Power Dissipation Capacitance	Typ: 20 pF (per gate)
Recommended Operating Conditions - Input Rise/Fall Times	Max: 500 ns (VCC=4.5V)

All parameters (19)ExpandCollapse

Power
Current - Output High, Low	5.2mA, 5.2mA
Current - Quiescent (Max)	2 µA
Voltage - Supply	2V ~ 6V
AC and DC characteristics
Max Propagation Delay @ V, Max CL	15ns @ 6V, 50pF
Environment and package
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
Package	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®

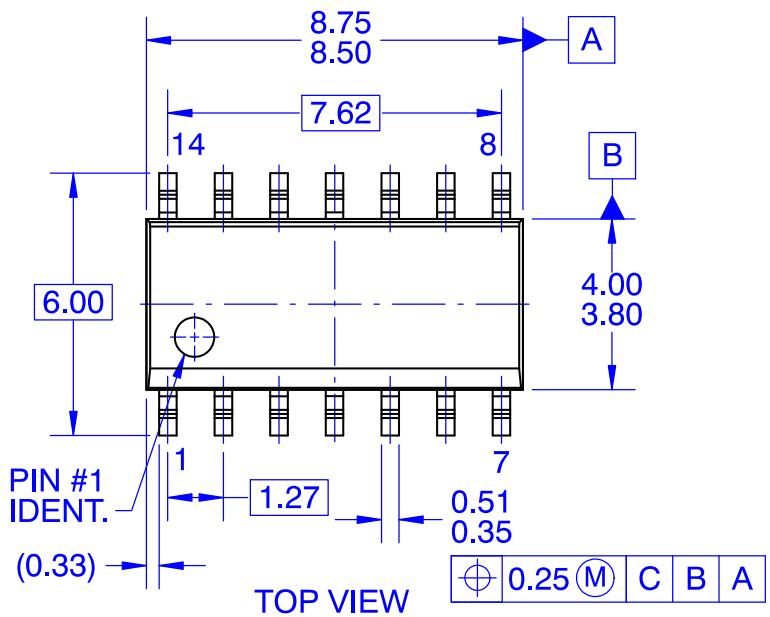

Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
Other
Base Product Number	74HC02
Features	-
Input Logic Level - High	1.5V ~ 4.2V
Input Logic Level - Low	0.5V ~ 1.8V
Logic Type	NOR Gate
Mfr	onsemi
Number of Circuits	4
Number of Inputs	2
Product Status	Active
Series	74HC

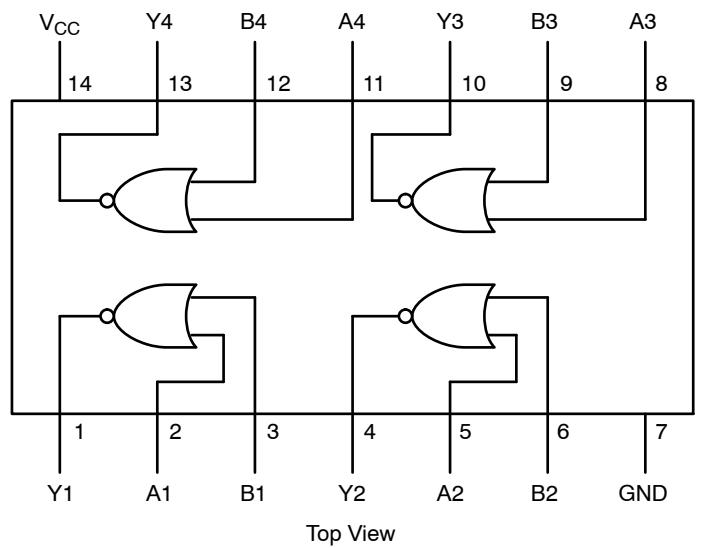

Pinout and package

Pin	Name	Function
1	Y1	(Output 1)
2	A1	(Input 1A)
3	B1	(Input 1B)
4	Y2	(Output 2)
5	A2	(Input 2A)
6	B2	(Input 2B)
7	GND	(Ground)
8	B3	(Input 3B)
9	A3	(Input 3A)
10	Y3	(Output 3)
11	A4	(Input 4A)
12	B4	(Input 4B)
13	Y4	(Output 4)
14	VCC	(Supply Voltage)
