Technical parameters

Key specs

Logic typeNOR
Elements4
Inputs2
Supply voltage2 ~ 6 V
Propagation delay15 nsMax · Max: 15 ns (VCC=5V,TA=25°C,CL=15 pF)

Datasheet-verified parameters

22 items
ParameterValue and test conditionsSource
Logic TypeNOR gates
Units4 (Quad)
Inputs2
Supply VoltageMin: 2 V, Max: 6 V
Propagation DelayTyp: 8 ns, Max: 15 ns (VCC=5V, TA=25°C, CL=15 pF)
Package14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150'' Narrow
Operating Temperature RangeMin: -40 °C, Max: +125 °C
GradeCommercial
RoHSPb-Free package per JEDEC J-STD-020B
Quiescent Supply CurrentMax: 20 µA (VCC=6.0V, TA=-40 to 85°C)
Input CurrentMax: ±1.0 µA (VIN=VCC or GND, VCC=6.0V, TA=-40 to 85°C)
Output CurrentMin: 4 mA (High output current capability)
Minimum HIGH Level Input VoltageMin: 3.15 V (VCC=4.5V, TA=-40 to 85°C)
Maximum LOW Level Input VoltageMax: 1.35 V (VCC=4.5V, TA=-40 to 85°C)
Minimum HIGH Level Output VoltageMin: 3.98 V (VCC=4.5V, |IOUT|≤4.0 mA, TA=-40 to 85°C)
Maximum LOW Level Output VoltageMax: 0.26 V (VCC=4.5V, |IOUT|≤5.2 mA, TA=-40 to 85°C)
Absolute Maximum Ratings - Supply Voltage-0.5 to +7.0 V
Absolute Maximum Ratings - Storage Temperature Range-65°C to +150°C
Recommended Operating Conditions - Input Rise or Fall TimesMax: 500 ns (VCC=4.5V)
Protection FeaturesAll inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground
Power Dissipation CapacitanceTyp: 20 pF (per gate)
Input CapacitanceMax: 10 pF (TA=-40 to 85°C)
All parameters (6)ExpandCollapse
Power
High Output Current4 mA (Min)
Maximum Quiescent Supply Current20 µA (Max)
Supply Voltage (VCC)2 to 6 V
AC and DC characteristics
Maximum Propagation Delay8 ns (Typ)
Environment and package
Operating Temperature Range (TA)-40 to +125 °C
Package Description14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150'' Narrow

Pinout and package

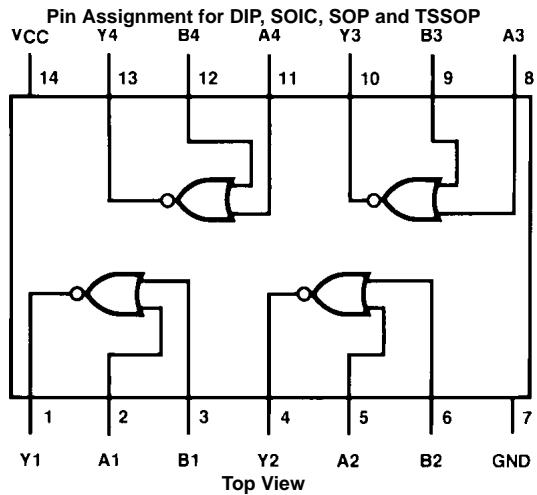

Connection Diagram Logic Diagr…
Connection Diagram Logic Diagr…

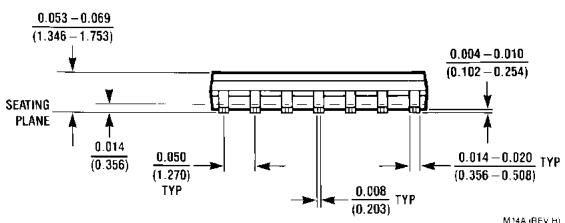

Package: 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150'' Narrow
PinNameFunctionSource
1Y1(Output 1)
2A1(Input 1A)
3B1(Input 1B)
4Y2(Output 2)
5A2(Input 2A)
6B2(Input 2B)
7GND(Ground)
8A3(Input 3A)
9B3(Input 3B)
10Y3(Output 3)
11A4(Input 4A)
12B4(Input 4B)
13Y4(Output 4)
14VCC(Power Supply)
