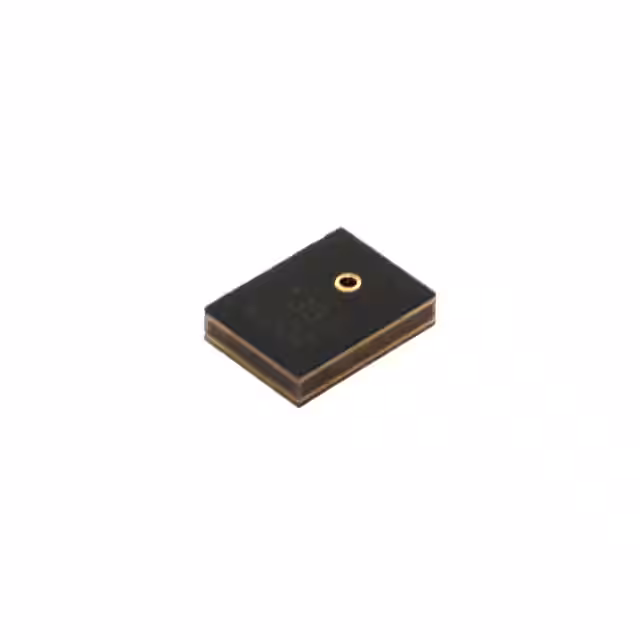

MM042602-15

MICROPHONE MEMS DIGITAL OMNI

All alternatives

Power
Current - Supply	640 µA
Voltage - Rated	2 V
AC and DC characteristics
Frequency Range	100 Hz ~ 10 kHz
Environment and package
Height (Max)	0.043" (1.10mm)
Package	Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Size / Dimension	0.157" L x 0.118" W (4.00mm x 3.00mm)
Other
Direction	Omnidirectional
Mfr	DB Unlimited
Output Type	Digital
Port Location	Top
Product Status	Active
Ratings	-
Sensitivity	-26dB ±1dB
Series	-
Shape	Rectangular
S/N Ratio	65dB
Termination	Solder Pads
Type	MEMS (Silicon)

No documents are linked to this part yet.
