AirBorn, Inc.United States

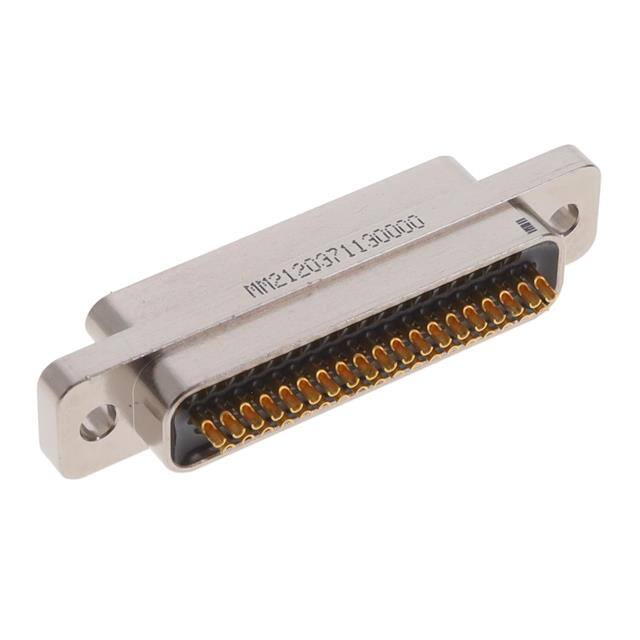

MICRO-D CONNECTORS (0.050" / 1.2
All alternatives
View full reportTechnical parameters
Key specs
Positions37
Rows2
GenderMale
Current rating3 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C~125°C |
| Package | Tray |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
| Other | |
| Backset Spacing | - |
| Color | - |
| Connector Style | D-Type, Micro-D |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Form | - |
| Contact Material | Beryllium Copper |
| Contact Type | Signal |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| Features | - |
| Flange Feature | Housing/Shell (Unthreaded) |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mfr | AirBorn, Inc. |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Primary Material | Metal |
| Product Status | Active |
| Series | M |
| Shell Material, Finish | Aluminum Alloy, Nickel Plated, Electroless |
| Termination | Solder Cup |
| Wire Gauge | - |
