Yangjie TechnologyChina
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|

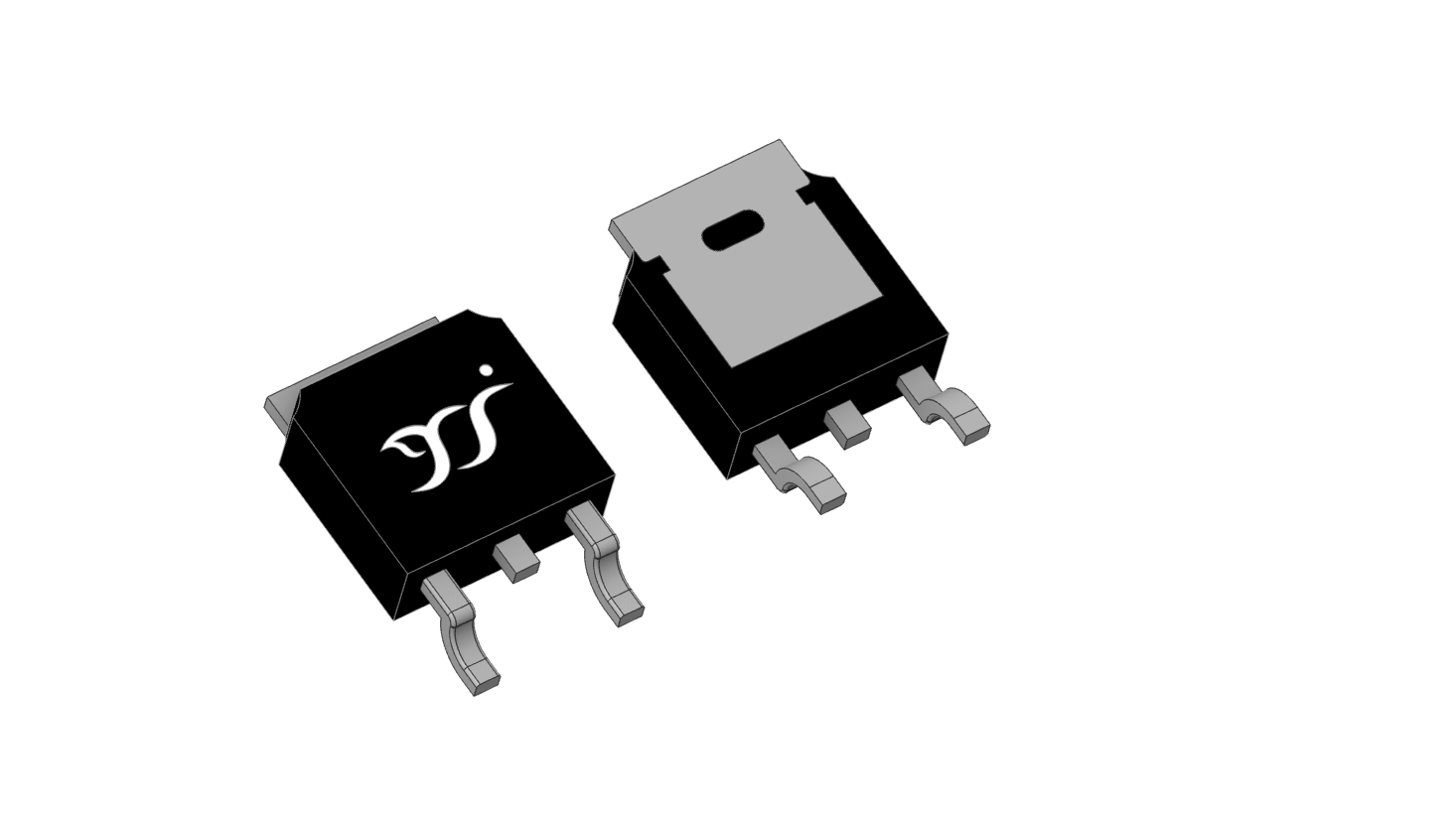

| Package | TO-252 |
| Other | |
| BVCBO(V) | 100 |
| BVCEO(V) | 100 |
| BVEBO(V) | 5 |
| Ft(MHz) | / |
| HFE_Max | 12000 |
| HFE_Min | 1000 |
| @IB(mA) | 16 |
| IC(A) | 8 |
| @Ic(mA) | 4000 |
| @IC(mA)_ | 4000 |
| PCM(mW) | 1500 |
| Status | Active |
| Type | NPN |
| VCE(sat)(V) | 2 |
| @Vce(V) | 4 |
Documents
DatasheetDatasheet · 313.4 KB · 2026-09-23EnvironmentalEnvironmental · 9.5 MB · 2026-09-23EnvironmentalEnvironmental · 9.1 MB · 2026-09-23EnvironmentalEnvironmental · 1.5 MB · 2026-09-23EnvironmentalEnvironmental · 1.4 MB · 2026-09-23Package DrawingPackage Drawing · 288.6 KB · 2026-09-23
Open document center
