TRANS DARL NPN 2A 100V DPAK
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage100 V
Collector current2 AMax
DC current gain10002A
Power20 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 20µA |
| Current - Collector (Ic) (Max) | 2 A |
| Power - Max | 20 W |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 2A, 3V |
| Frequency - Transition | 25MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Cut Tape (CT); Digi-Reel® |

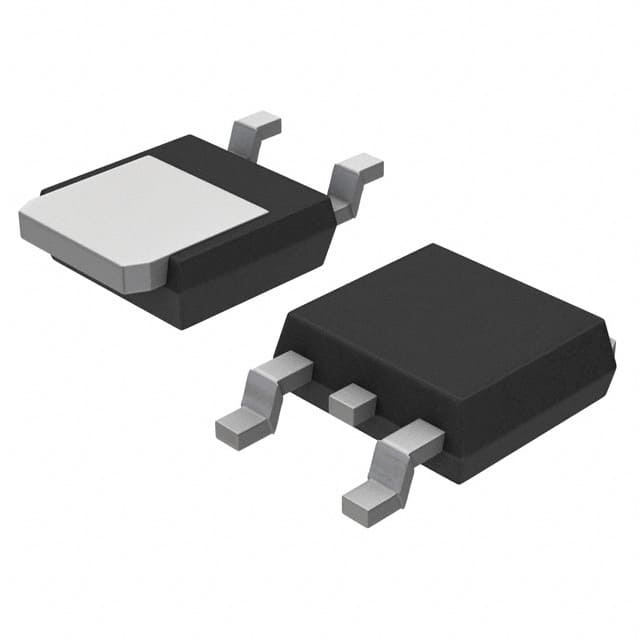

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Other | |
| Base Product Number | MJD11 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN - Darlington |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 8mA, 2A |
