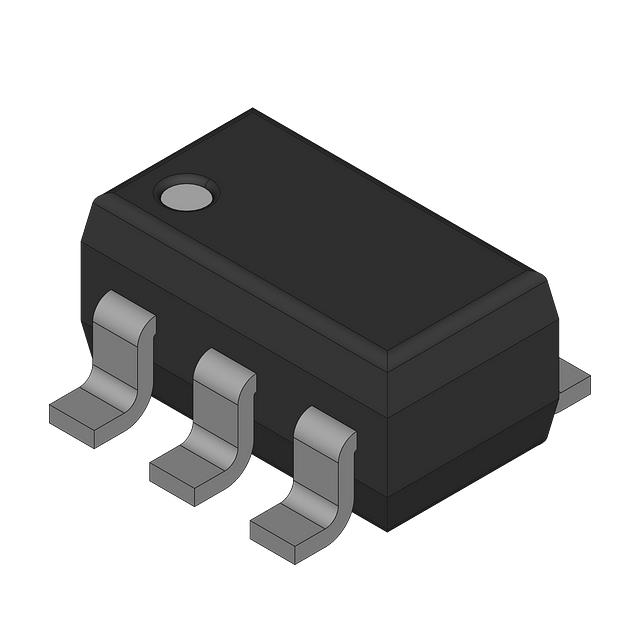

MIC5307-1.8YD5
Micrel Inc.United States

MIC5307-1.8YD5

Voltage Regulators - Linear, Low Drop Out (LDO) RegulatorsSOT-23-5 Thin

IC REG LINEAR 300MA MICROPOWER

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Output voltage1.8 V
Output current300 mAMax
Input voltage≤ 5.5 V
Dropout voltage250 mVMax · 300mA
Quiescent current30 µATyp
Power
Current - Output300mA
Current - Quiescent (Iq)30 µA
Voltage Dropout (Max)0.25V @ 300mA
Voltage - Input (Max)5.5V
Voltage - Output (Max)-
Voltage - Output (Min/Fixed)1.8V
AC and DC characteristics
PSRR62dB ~ 35dB (10Hz ~ 20kHz)
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 125°C
Package / CaseSOT-23-5 Thin, TSOT-23-5
Supplier Device PackageTSOT-23-5
Other
Control FeaturesEnable
MfrMicrel Inc.
Number of Regulators1
Output ConfigurationPositive
Output TypeFixed
PackagingBulk
Part StatusActive
Protection FeaturesOver Current, Over Temperature
Series-
