Micrel Inc.United States

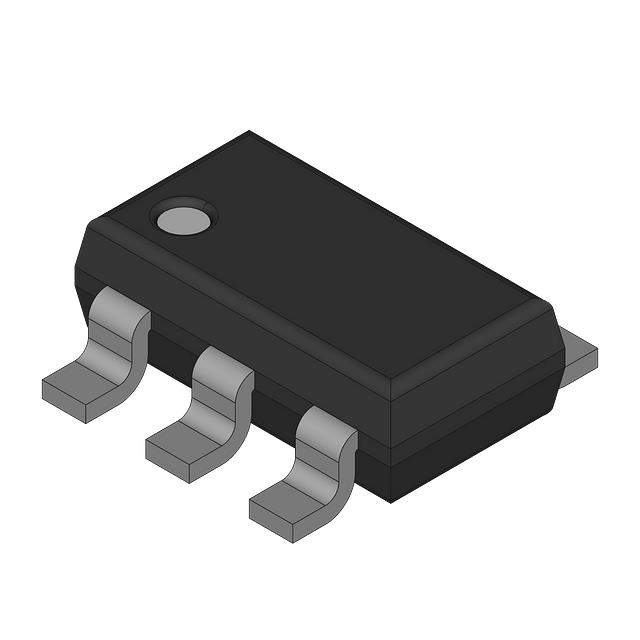

MIC5305 -150 MA MICROCAP ULTRA-L
All alternatives
View full reportTechnical parameters
Key specs
Output voltage3.3 V
Output current150 mAMax
Input voltage≤ 5.5 V
Dropout voltage110 mVMax · 150mA
Quiescent current150 µATyp
| Power | |
|---|---|
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Voltage Dropout (Max) | 0.11V @ 150mA |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| AC and DC characteristics | |
| PSRR | 85dB ~ 65dB (1kHz ~ 10kHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Other | |
| Control Features | Current Limit, Enable |
| Mfr | Micrel Inc. |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Packaging | Bulk |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| Series | - |
