Micrel Inc.United States
IC REG LINEAR SGL 300MA CMOS
All alternatives
View full reportTechnical parameters
Key specs
Output voltage2.9 V
Output current300 mAMax
Input voltage≤ 5.5 V
Dropout voltage200 mVMax · 300mA
Quiescent current120 µATyp
| Power | |
|---|---|
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 120 µA |
| Voltage Dropout (Max) | 0.2V @ 300mA |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.9V |
| AC and DC characteristics | |
| PSRR | 65dB ~ 42dB (1kHz ~ 20kHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |

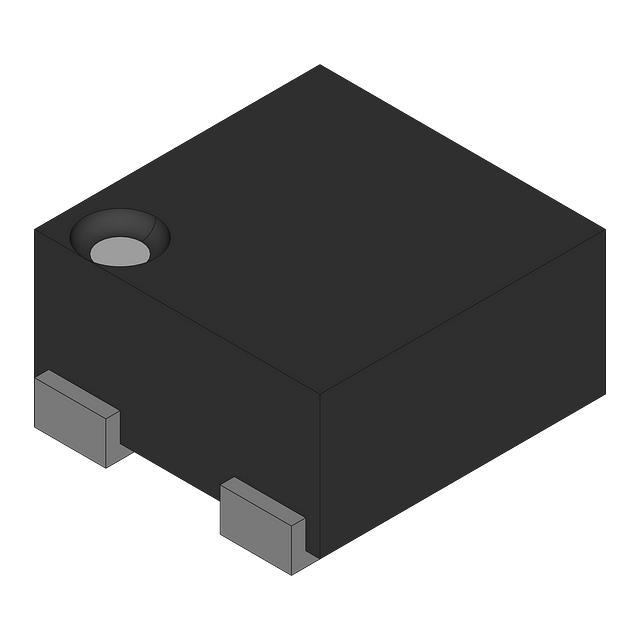

| Package / Case | 4-VFDFN Exposed Pad, 4-TMLF® |
| Supplier Device Package | 4-TMLF® (1.2x1.6) |
| Other | |
| Control Features | Enable |
| Mfr | Micrel Inc. |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Packaging | Bulk |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| Series | - |
