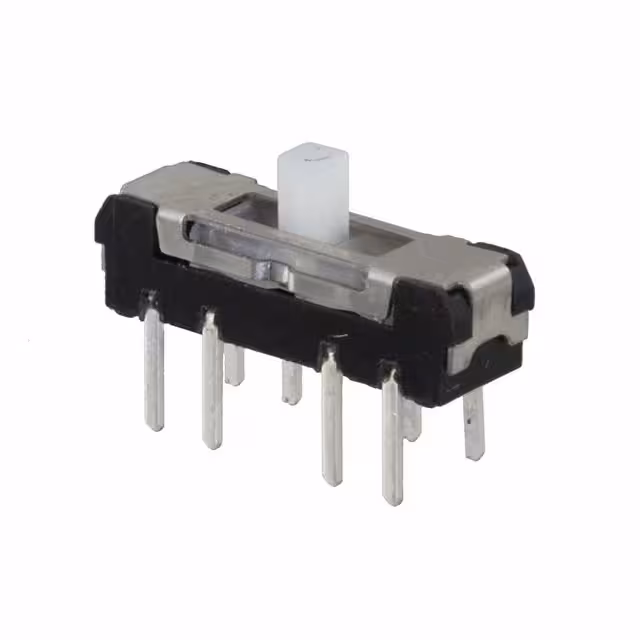

SWITCH SLIDE DP3T 200MA 12V
All alternatives
View full reportTechnical parameters
Key specs
Switch functionOn-On
Current rating200 mAMax
Voltage rating12 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 200mA (DC) |
| Voltage Rating - DC | 12 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -10°C~70°C |
| Package | Bulk |
| Other | |
| Actuator Length | 2.00mm |
| Actuator Material | - |
| Actuator Type | Standard |
| Circuit | DP3T |
| Contact Finish | Silver |
| Contact Material | - |
| Contact Timing | Non-Shorting (BBM) |
| Electrical Life | 5,000 Cycles |
| Features | - |
| Mechanical Life | - |
| Mfr | Nidec Copal Electronics |
| Operating Force | 50 ~ 400gf |
| Product Status | Obsolete |
| Series | MHS |
| Switch Function | On-On-On |
| Switch Travel | 2.00mm |
| Termination Style | PC Pin |
