Powerex Inc.United States

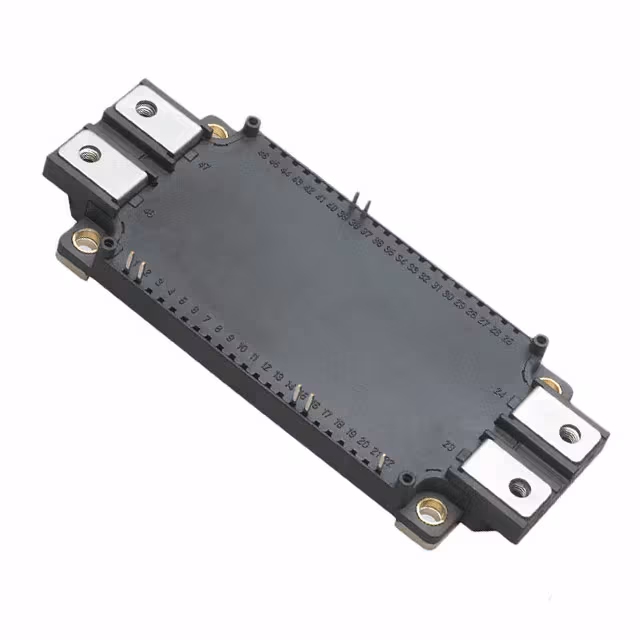

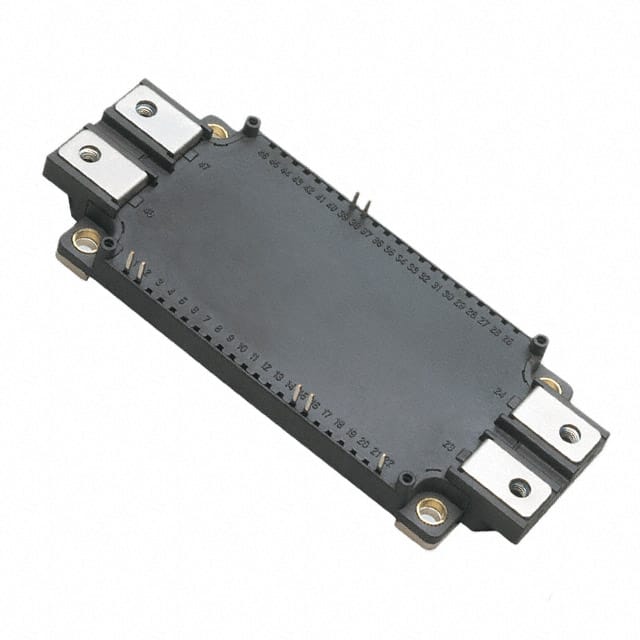

IGBT MOD 1700V 400A 4300W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1 mA |
| Current - Collector (Ic) (Max) | 400 A |
| Power - Max | 4300 W |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | Module |
| Supplier Device Package | Module |
| Other | |
| Configuration | Half Bridge |
| IGBT Type | - |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 45 nF @ 10 V |
| Mfr | Powerex Inc. |
| NTC Thermistor | Yes |
| Product Status | Obsolete |
| Series | IGBTMOD™ |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 400A |
