Vishay Beyschlag/Draloric/BC ComponentsUnited States

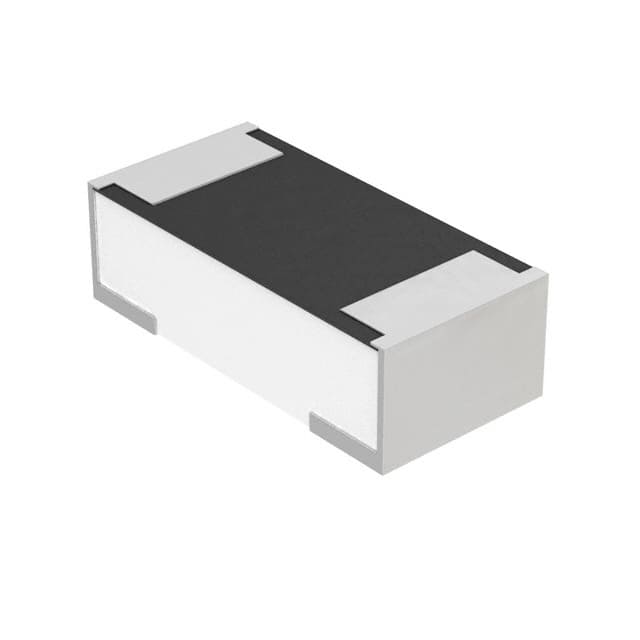

FUSE BOARD MNT 500MA 32VDC 0402
All alternatives
View full reportTechnical parameters
Key specs
Rated current500 mA
Rated voltage32 V
Response timeFast
Breaking capacity50 A
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 500 mA |
| Voltage Rating - DC | 32 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.040" L x 0.020" W x 0.013" H (1.00mm x 0.50mm x 0.32mm) |
| Other | |
| Approval Agency | UL |
| Color | - |
| DC Cold Resistance | 0.56 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.0009 |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Product Status | Active |
| Response Time | Fast Blow |
| Series | MFU |
