RosenbergerGermany

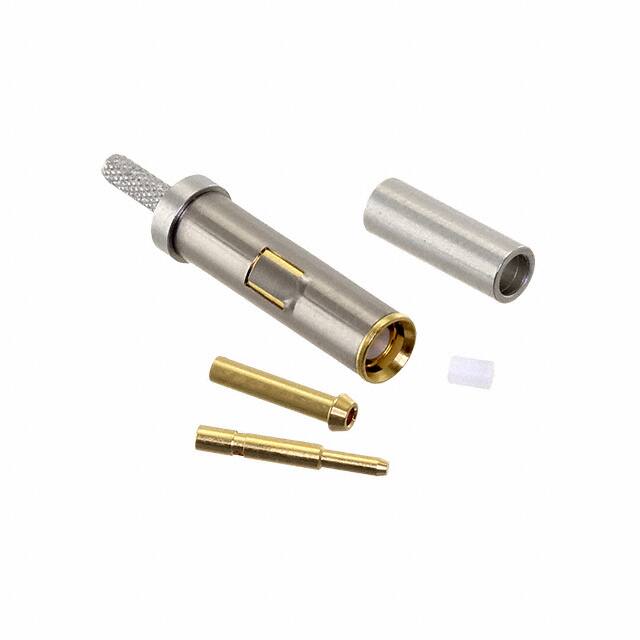

CONN MF JACK STR 50OHM CRIMP
All alternatives
View full reportTechnical parameters
Key specs
GenderFemale
Impedance50 Ω
Max frequency2 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 2 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -25°C~85°C |
| Package | Bulk |
| Other | |
| Base Product Number | MF1K109 |
| Body Finish | Gold |
| Body Material | Bronze |
| Cable Group | - |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | MF |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Features | Non-Magnetic |
| Housing Color | Gold |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Ingress Protection | - |
| Insertion Loss | 1.8dB |
| Mating Cycles | 100000 |
| Mfr | Rosenberger |
| Number of Ports | 1 |
| Product Status | Active |
| Series | MedTech |
| Shield Termination | Crimp |
