Bourns Inc.United States

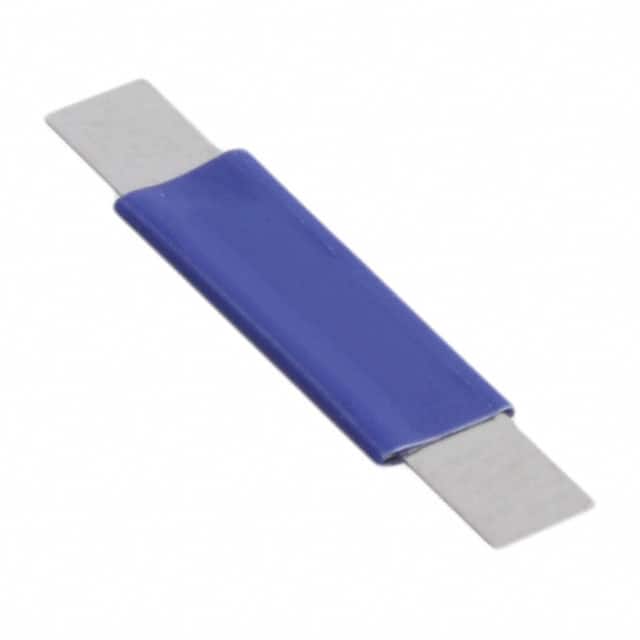

PTC RESET FUSE 16V 1.7A STRAP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Hold (Ih) (Max) | 1.7 A |
| Current - Max | 100 A |
| Current - Trip (It) | 3.4 A |
| Voltage - Max | 16V |
| Environment and package | |
| Mounting Type | User Defined |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Strap |
| Size / Dimension | 0.669" L x 0.205" W (17.00mm x 5.20mm) |
| Other | |
| Approval Agency | cURus, TUV |
| Base Product Number | MF-VS |
| Lead Spacing | - |
| Mfr | Bourns Inc. |
| Product Status | Active |
| Ratings | - |
| Resistance - Initial (Ri) (Min) | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 105 mOhms |
| Series | Multifuse®, MF-VS |
| Thickness (Max) | 0.035" (0.90mm) |
| Time to Trip | 3 s |
| Type | Polymeric |
