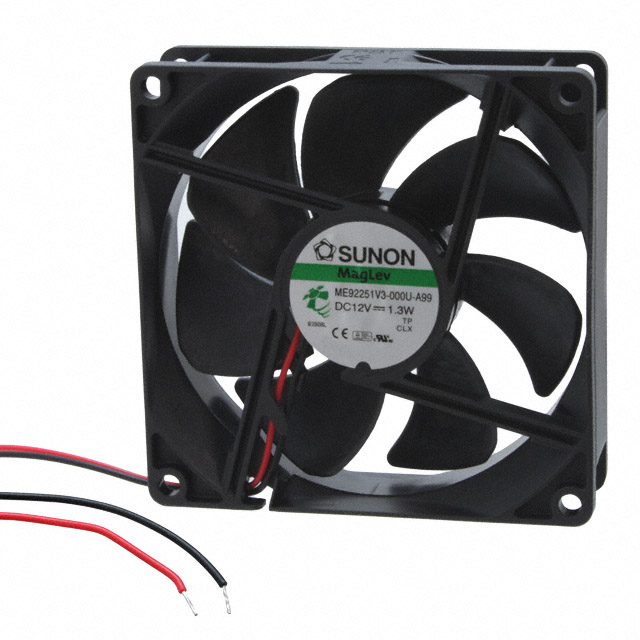

ME92251V3-000U-A99
Sunon FansTaiwan, China

ME92251V3-000U-A99

ObsoleteDC Brushless Fans (BLDC)

FAN AXIAL 92X25MM 12VDC WIRE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)91mA
Power (Watts)1.3 W
Voltage Range4.5 ~ 13.8VDC
Voltage - Rated12VDC
AC and DC characteristics
Noise28.0dB(A)
Environment and package
Lifetime @ Temp.70000 Hrs @ 40°C
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
PackageTray
Size / DimensionSquare - 92mm L x 92mm H
Other
Air Flow39.5 CFM (1.11m³/min)
Approval AgencyCE, CUR, TUV, UL
Bearing TypeVapo-Bearing™
Fan TypeTubeaxial
FeaturesAuto Restart
Ingress Protection-
Material - BladePolybutylene Terephthalate (PBT)
Material - FramePolybutylene Terephthalate (PBT)
MfrSunon Fans
Product StatusObsolete
RPM2400 RPM
SeriesMagLev® ME
Static Pressure0.100 in H2O (24.9 Pa)
Termination2 Wire Leads
Weight0.207 lb (93.89 g)
Width25.00mm
